Acapulco House by Flavio Castro

May 8, 2014

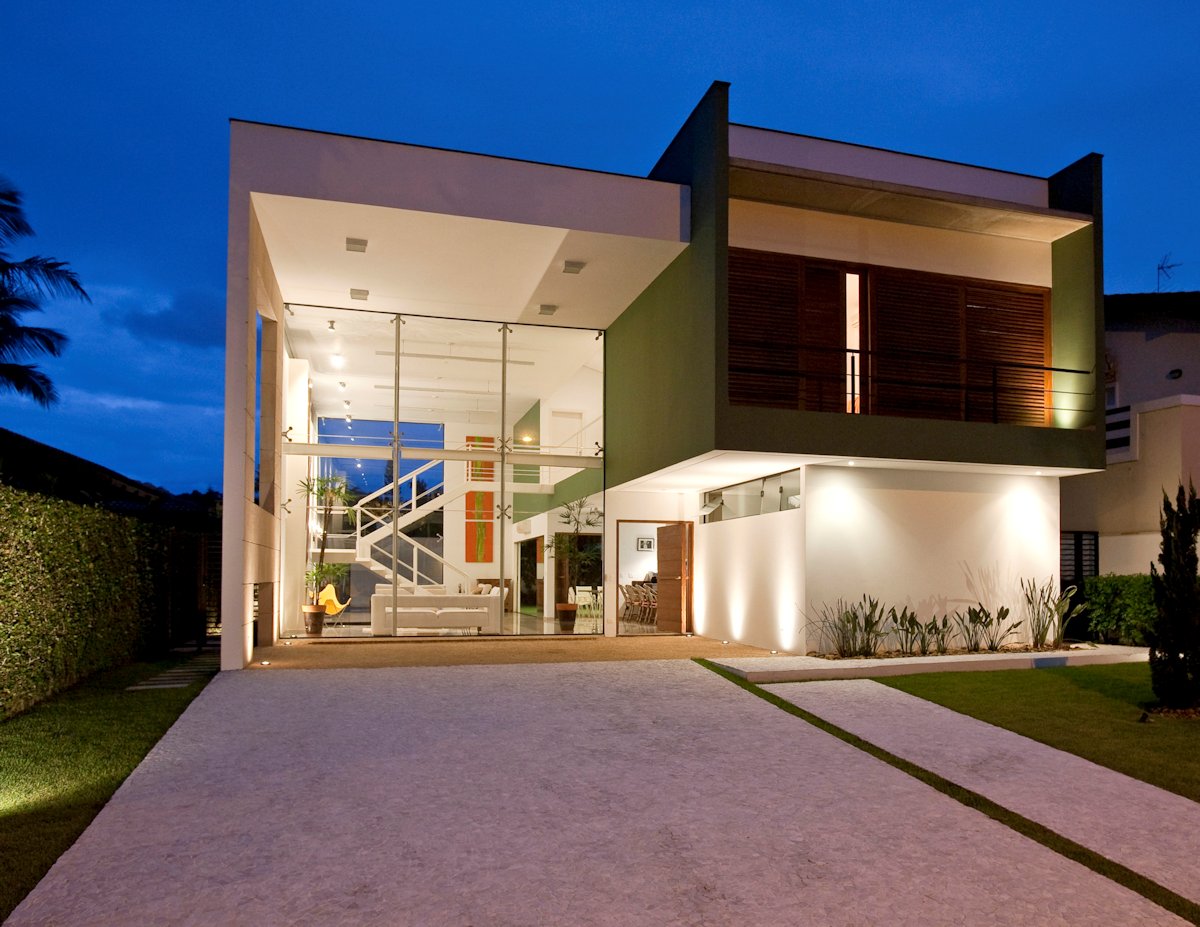

Architect Flavio Castro has designed the Acapulco House in São Paulo, Brazil.

ac_080514_01

ac_080514_06

ac_080514_09

ac_080514_10

ac_080514_18

ac_080514_19

ac_080514_21

ac_080514_23

ac_080514_26

Project description

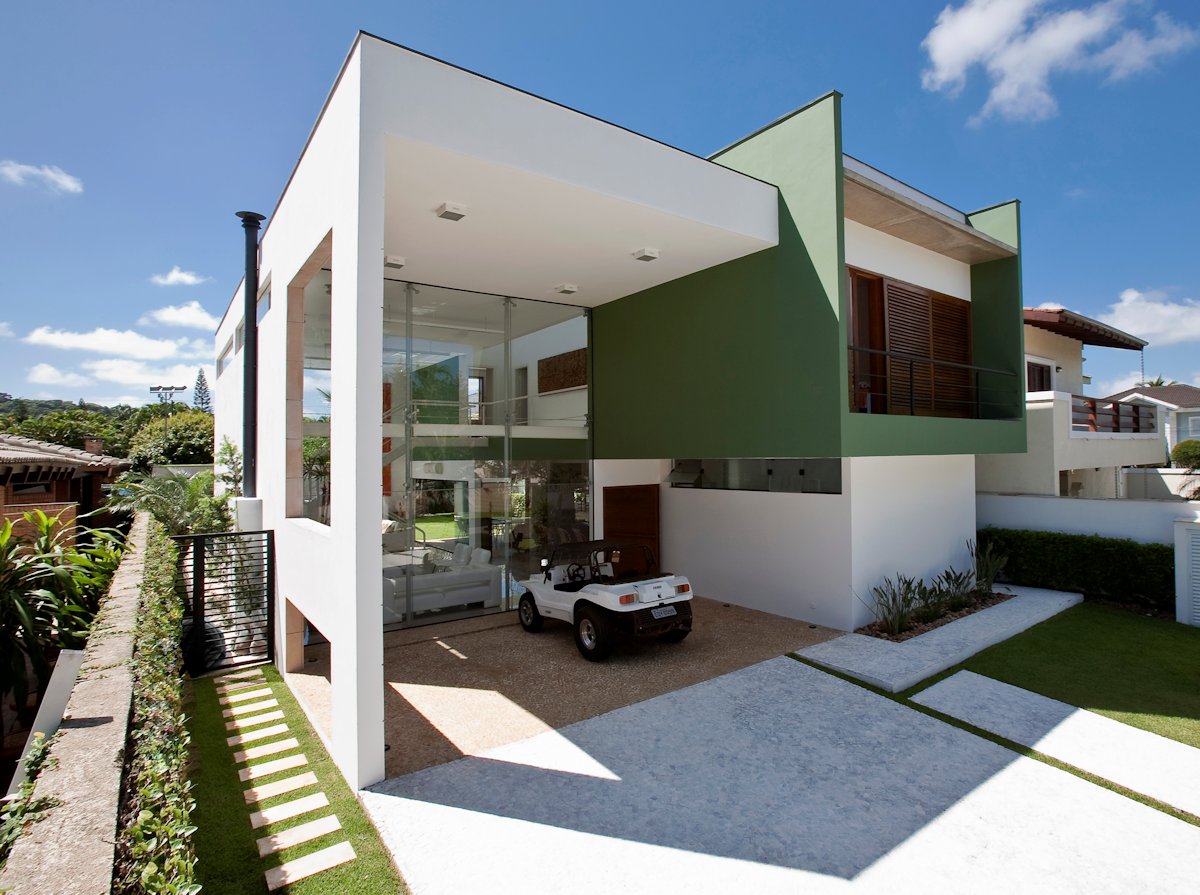

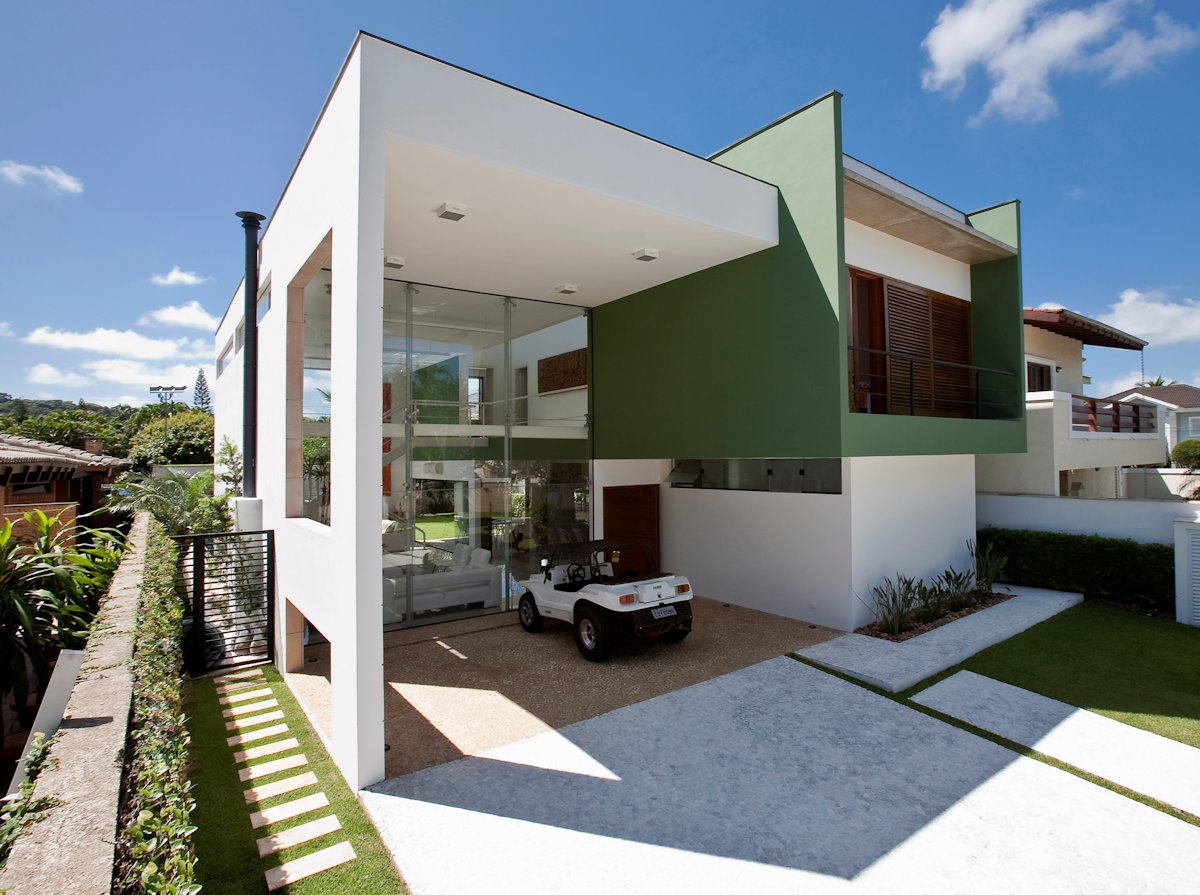

The house is composed by 6 squares grouped in pairs. Within this compositional rule, two subtractions were made at opposite sides to form two venues: the garage in the front and the social area behind. The different relationships that they establish with their neighbors (other squares) were determinate by the unevenness of the floor, transparency and accessibility. In the sketch below is possible comprehend this.

Clearly we can perceive one middle axis that articulates empty halves and a pavilion in the backyard that creates a dialog with the main house

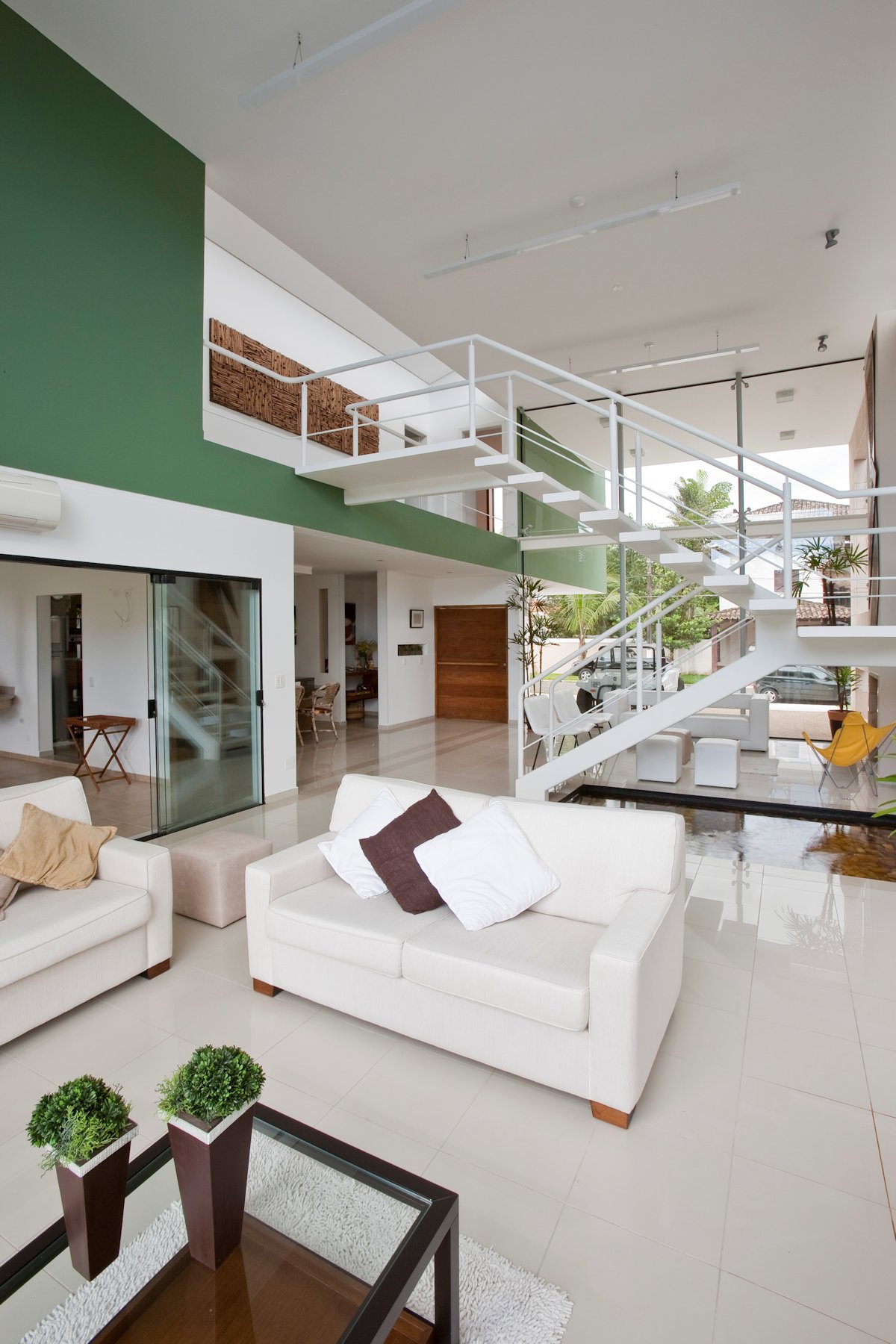

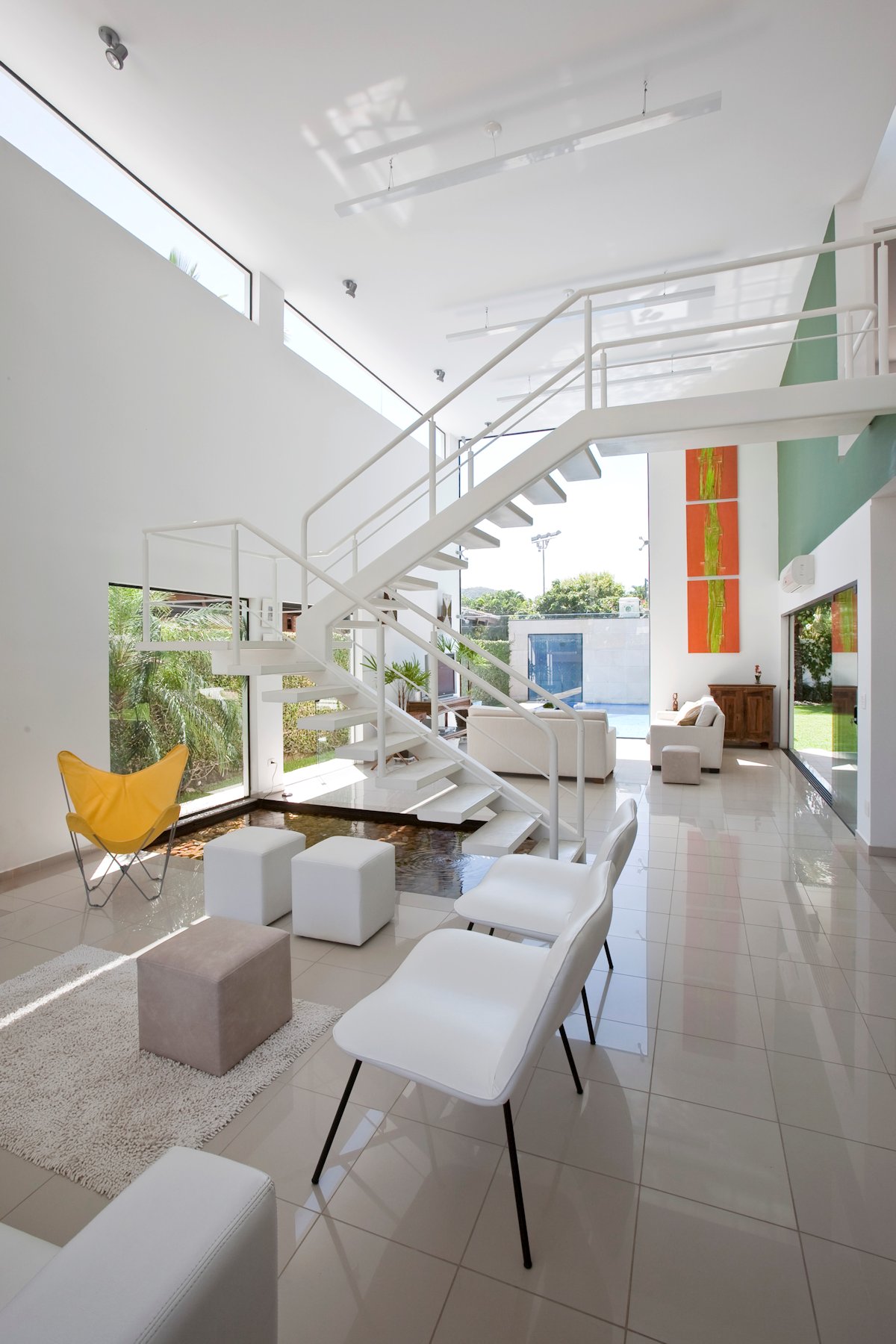

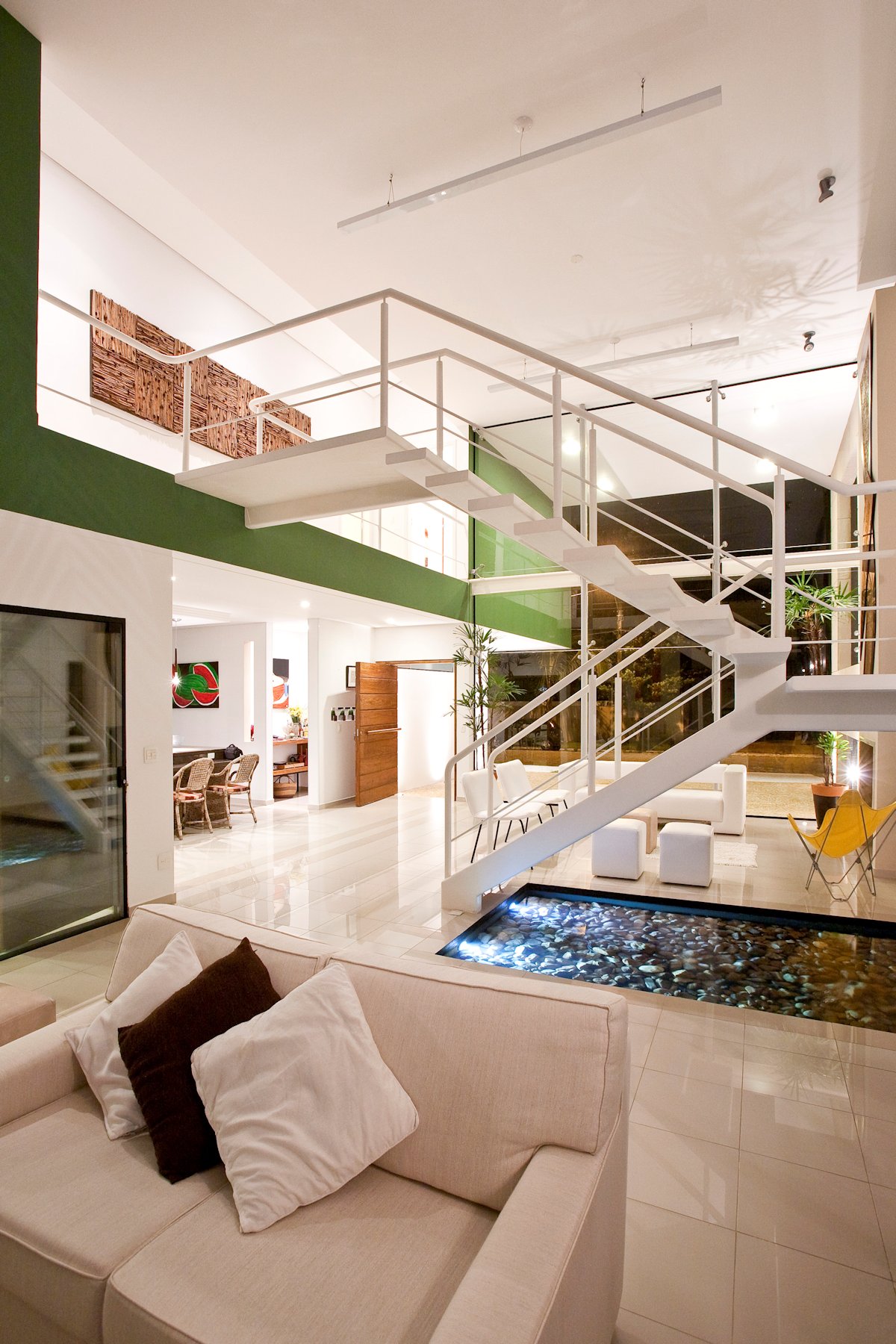

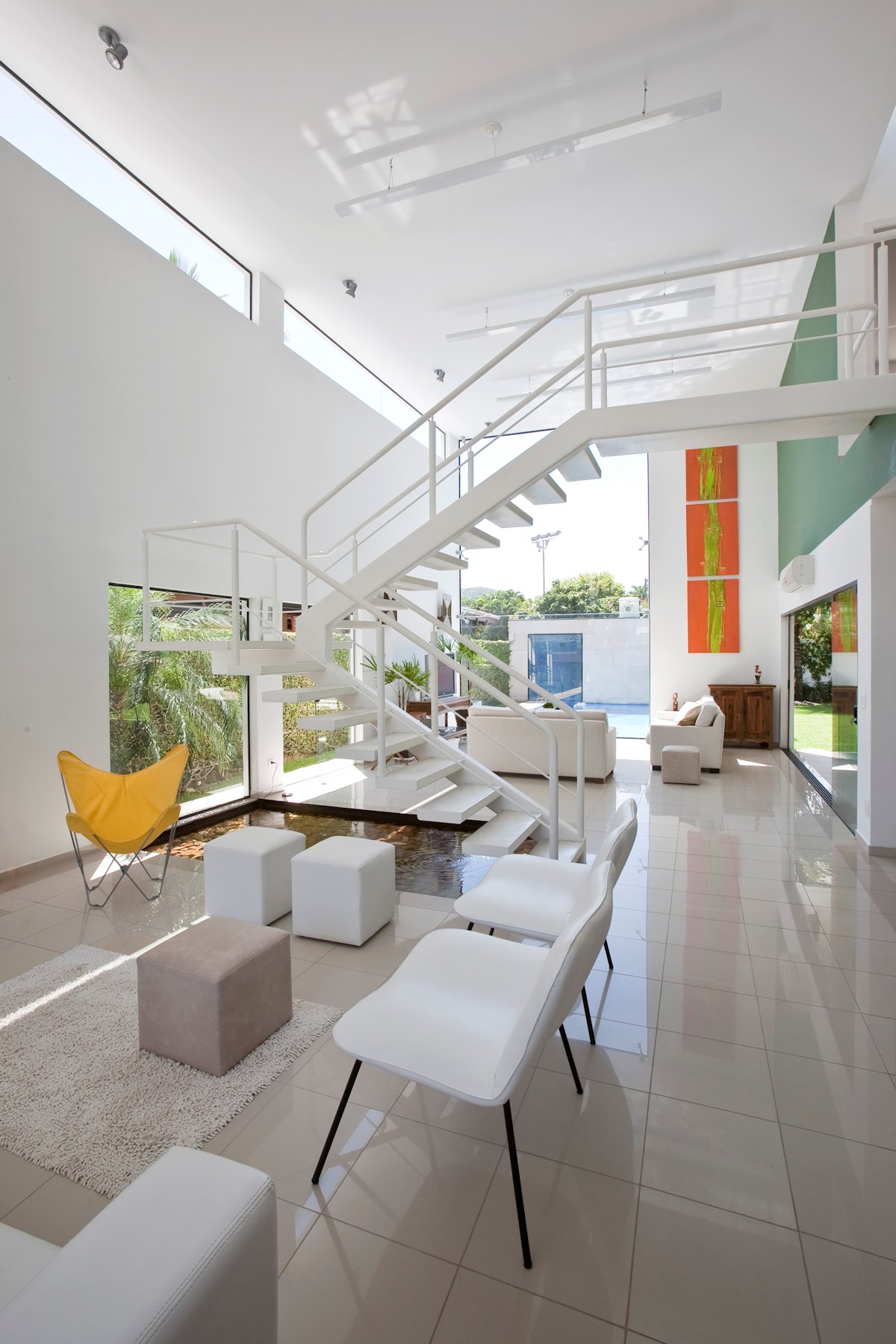

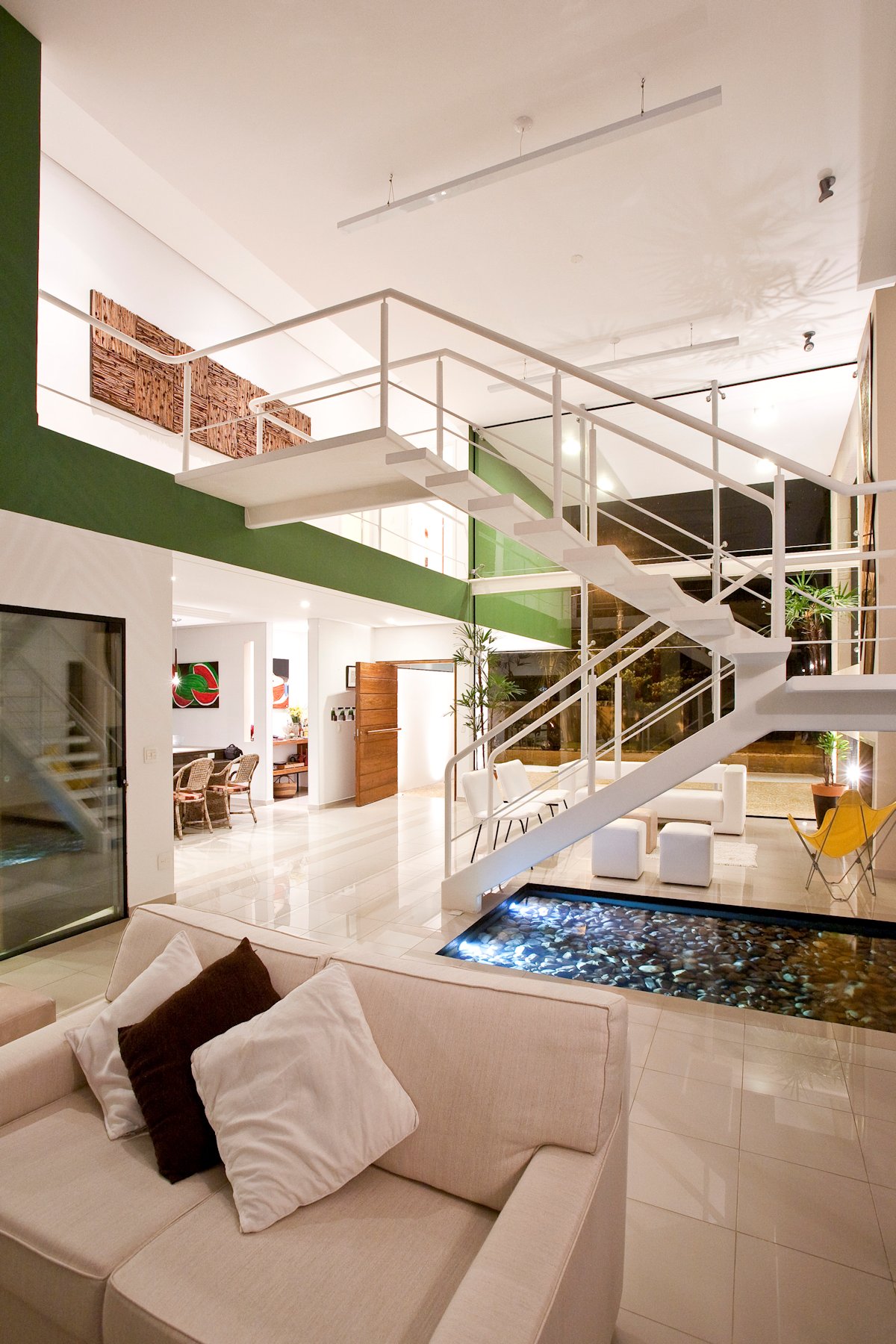

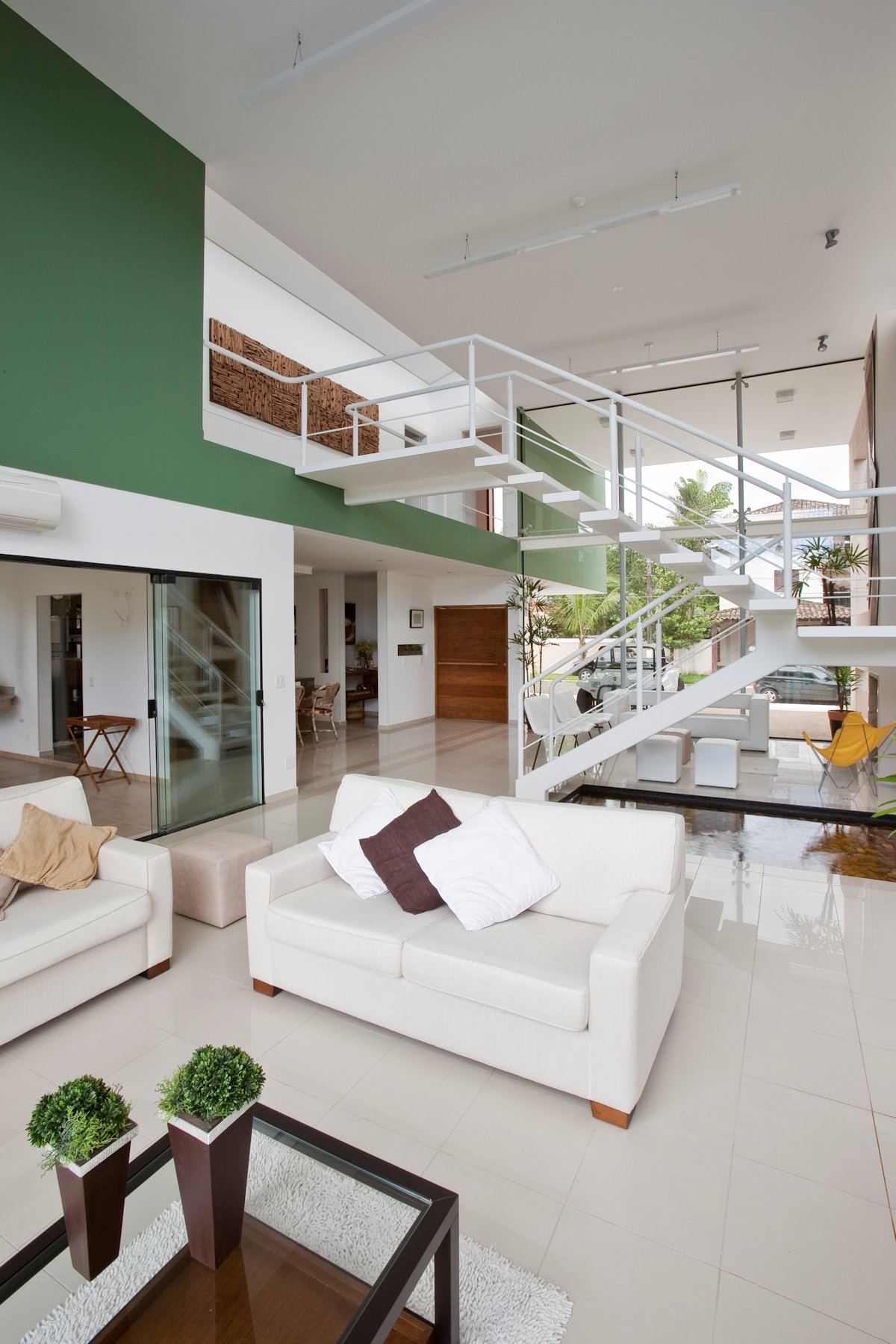

In the left side, there is a succession of rooms is a space width 5.50 m tall and huge transparency in parallel facades to the street. This transparency reaffirms the continuity of the space. Only one discontinuity happens by the stairs that leads to the upper floor. Metallic self-supporting, acetic and colorless, it cuts the sequence of rooms at one point creating a visual filter between the public street and the private backyard

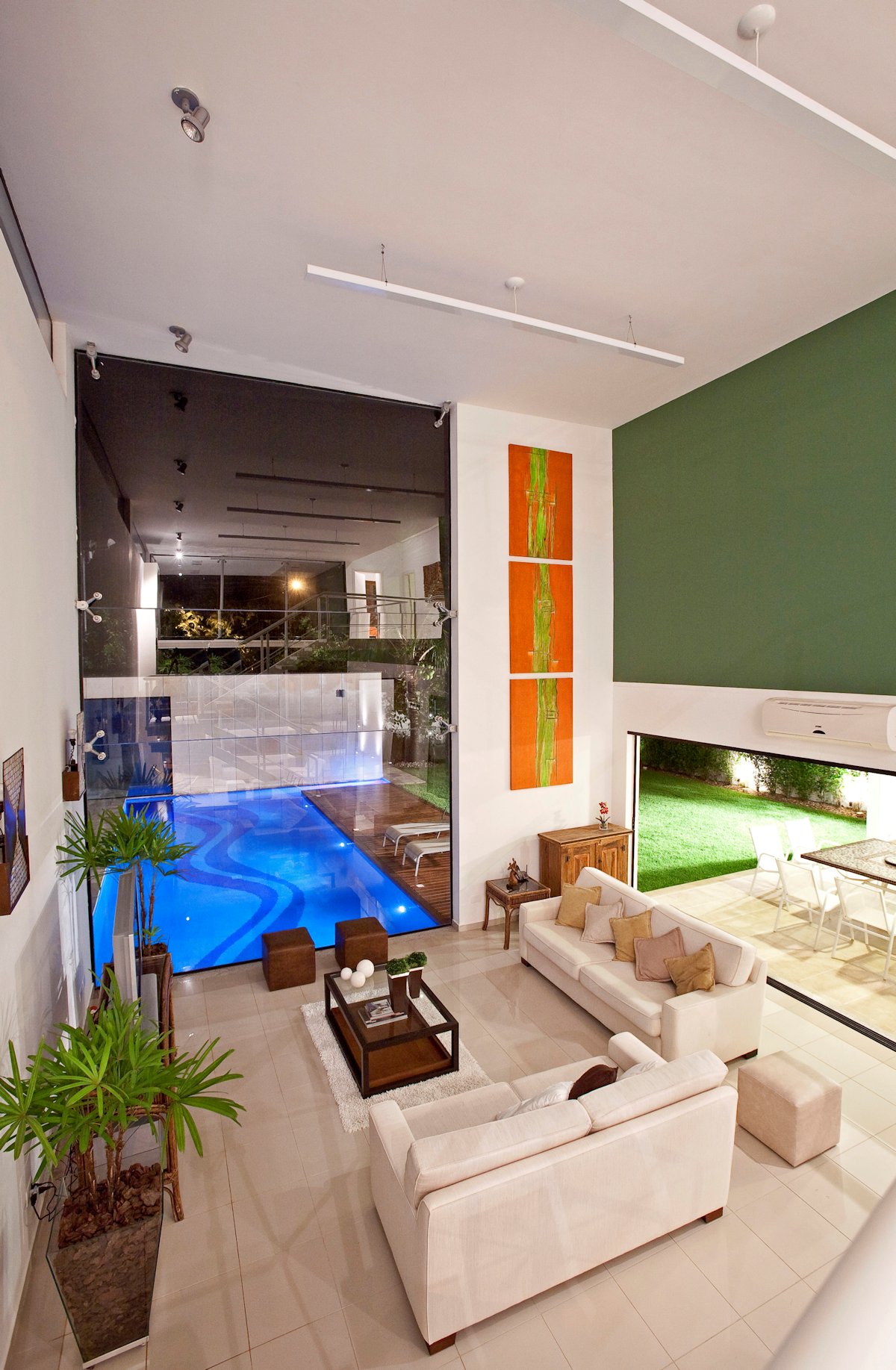

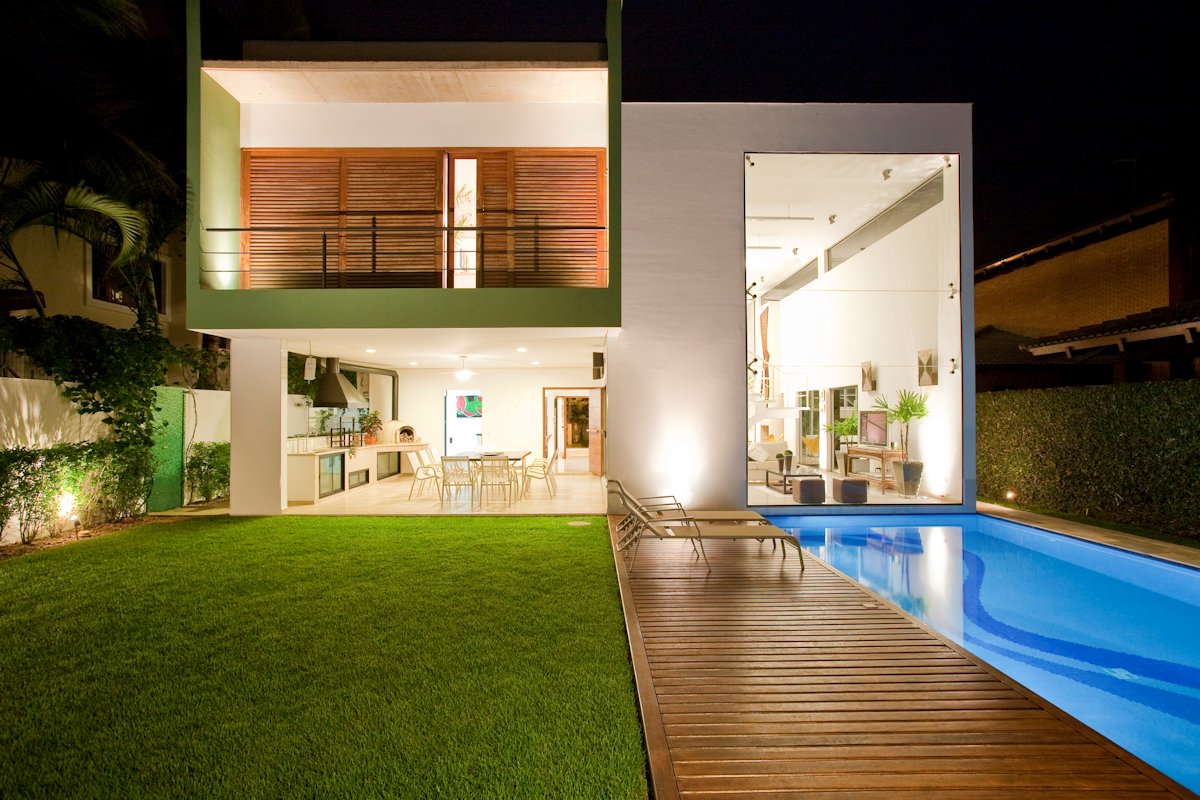

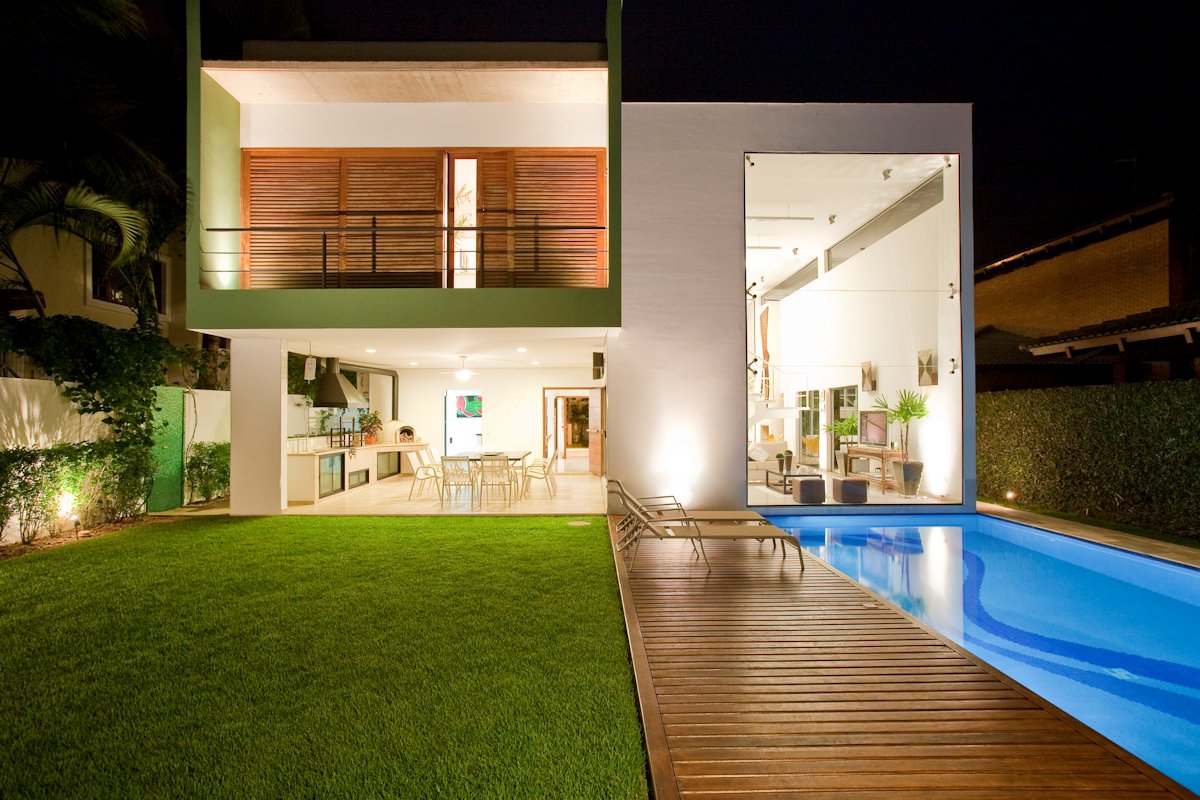

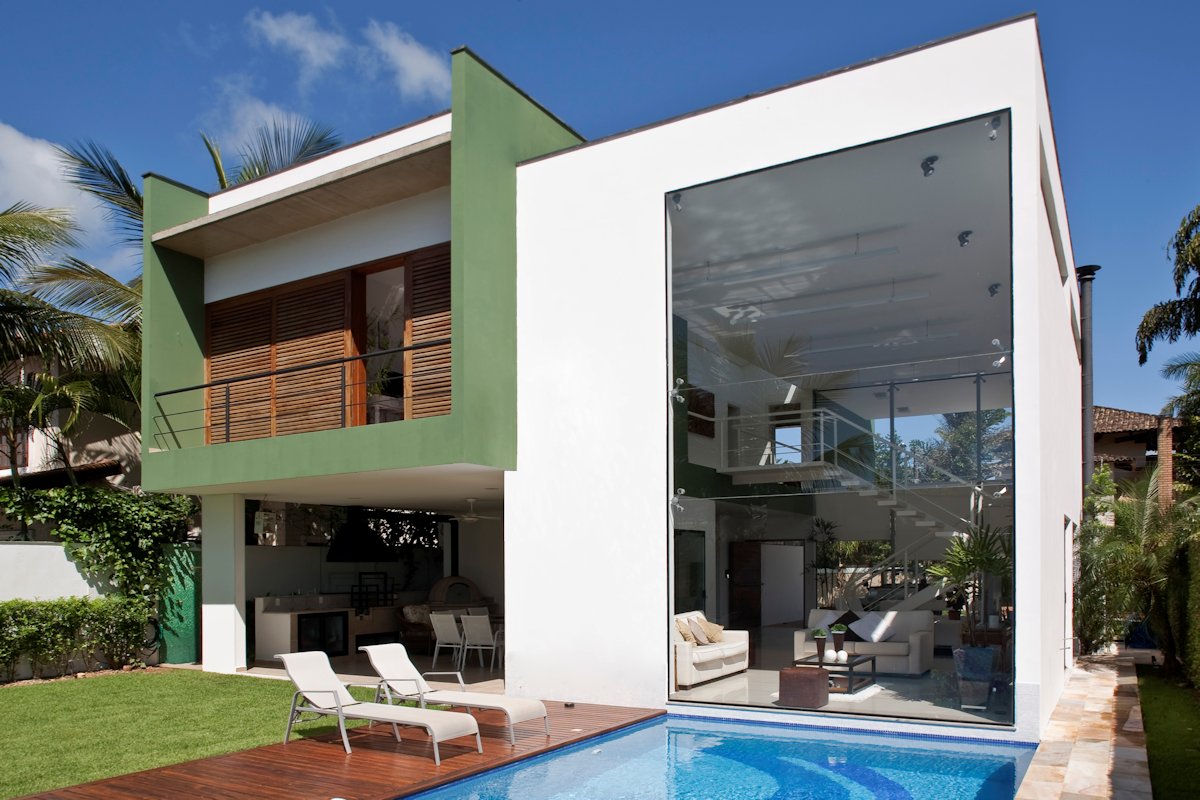

At the bottom left side the pavilion ends the succession of social environments. Separated of the house by the pool and deck, creates a tension between the house and itself. This interval space (range, pool) wins quality in the duality between “seeing and being seen”, completely dissolving the notion of attachment that could be created by the pavilion.

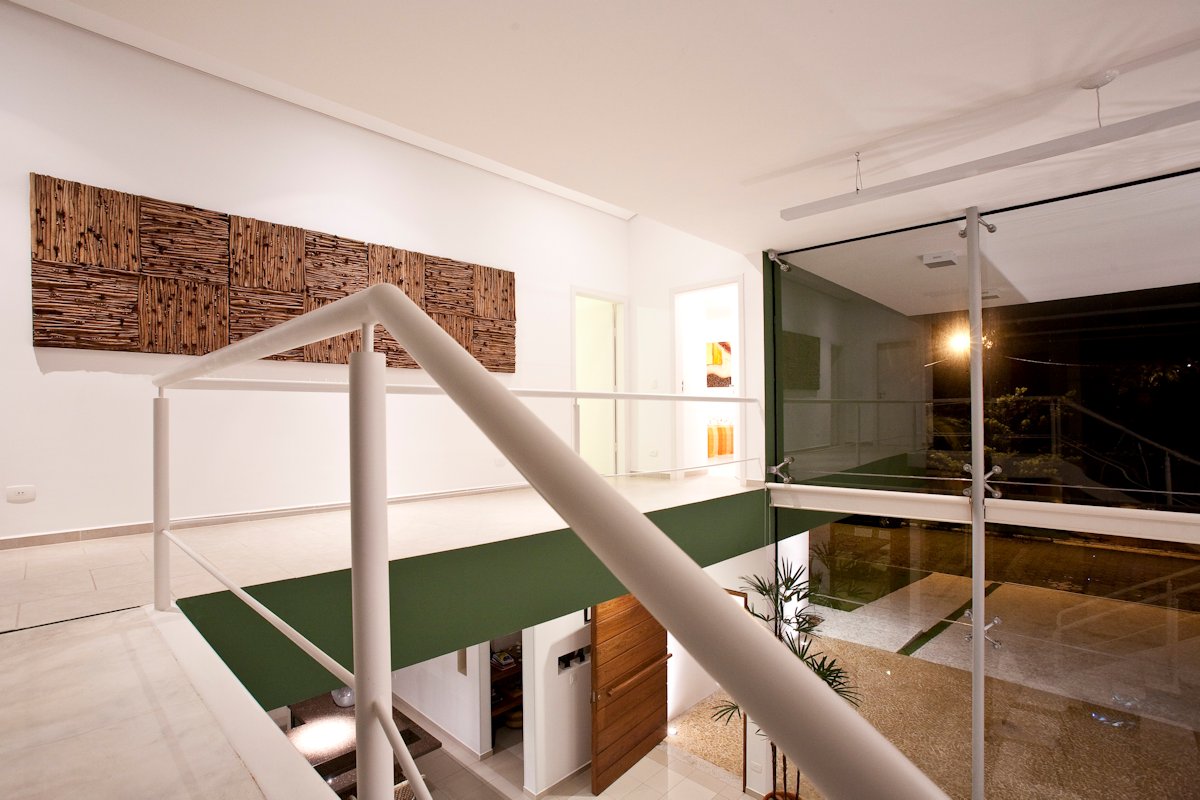

In the upper floor we have four suites with a marked symmetry. They are accessed by a hallway illuminated by a window above the head of the visitor and demystifies the corridor such as the word suggests. This entire upper floor is part of a common function (private area) outlined in the project by volume and color (green).

The openings (windows, etc) are projected in function of the touches between the geometries of the house. To the neighbors, the openings are very punctual, while in others facades are quite present.

The water surface under de interior stair returns to the air humidity in days of intense heat in the city of Brazil, a tropical country, and the roof garden of the pavilion keeps a low temperature of its flat roof.

The logic of the regular squares greatly facilitated the mathematical calculations and the structural performance of the house, because the same constructive procedure could be adopted for the entire building. The distances between pillars are almost the same and there are no structural transitions between the main and upper floor.

Design: Flavio Castro

Photography by Marcelo Scandaroli
