Capitol Hill House by SHED Architecture & Design

March 26, 2014

SHED Architecture & Design have completed a family home in Seattle, Washington.

ch_260314_01

ch_260314_02

ch_260314_06

ch_260314_07

ch_260314_11

ch_260314_13

Project description

Site

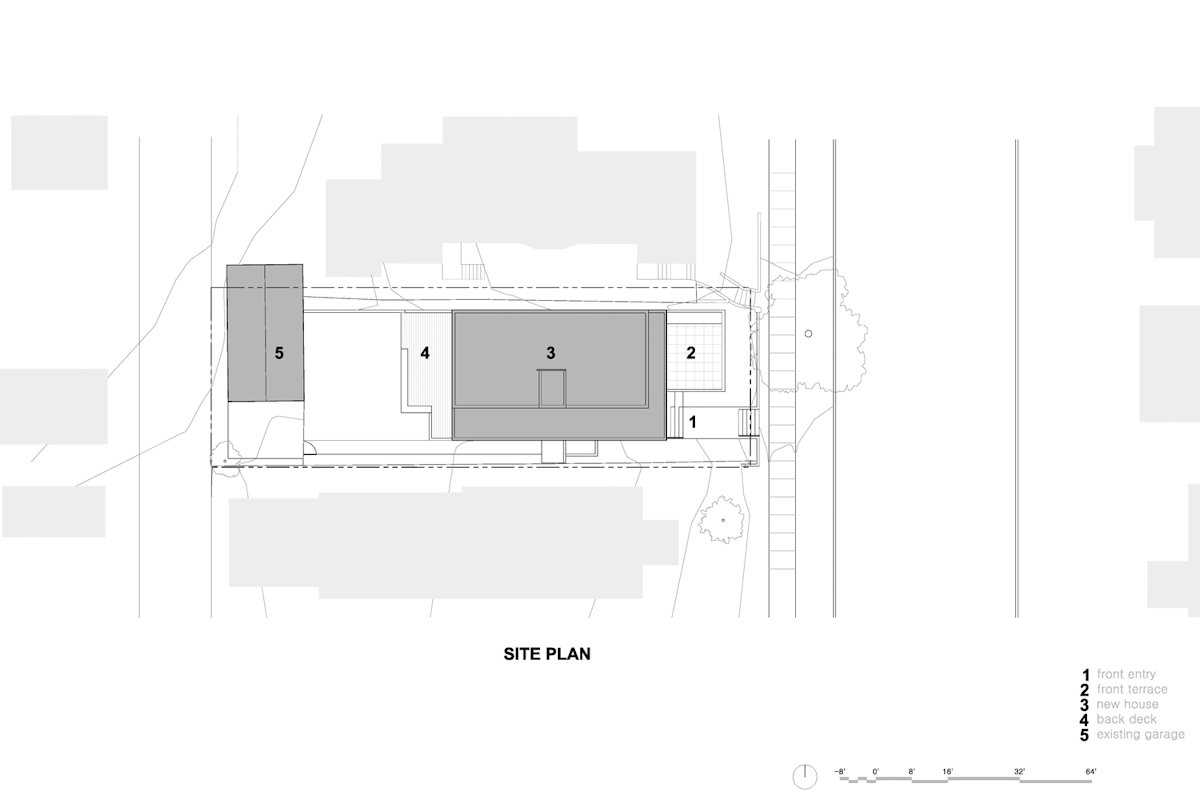

A 40’ x 120‘ lot in in Seattle’s East Capitol Hill neighborhood that sits on a well-traveled tree lined arterial.

Program

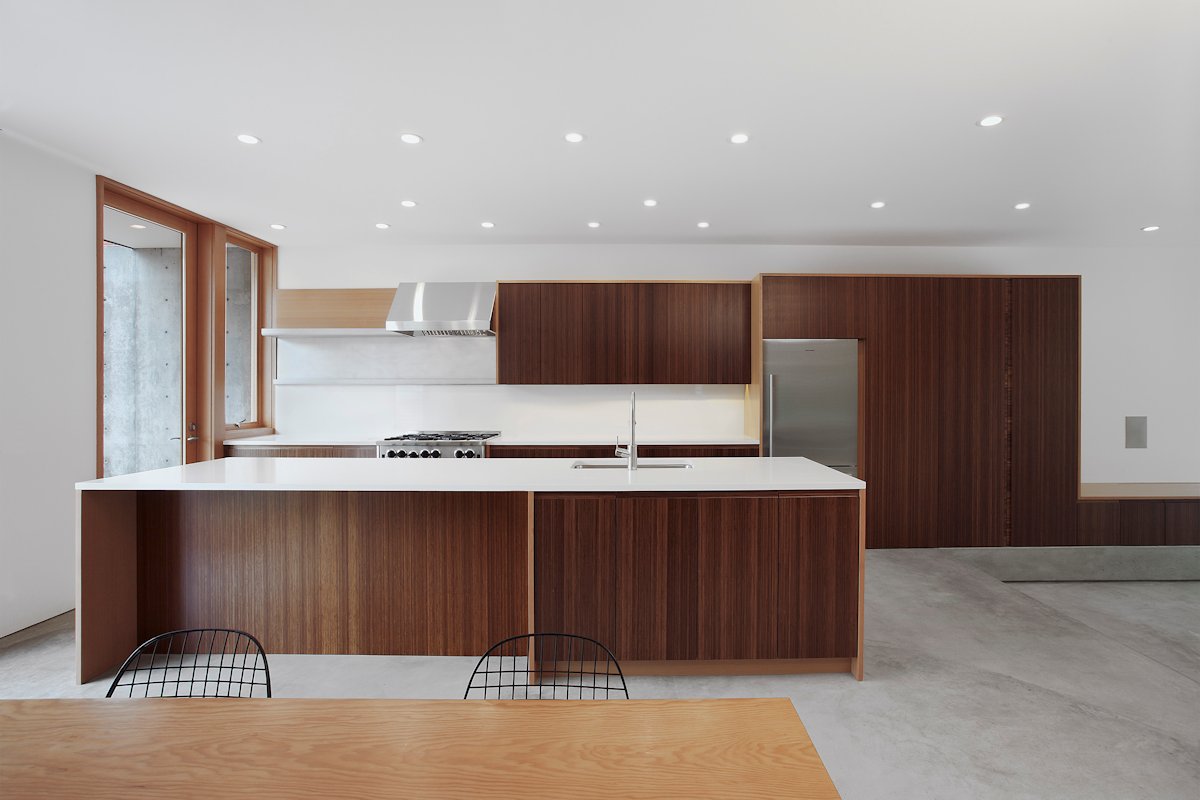

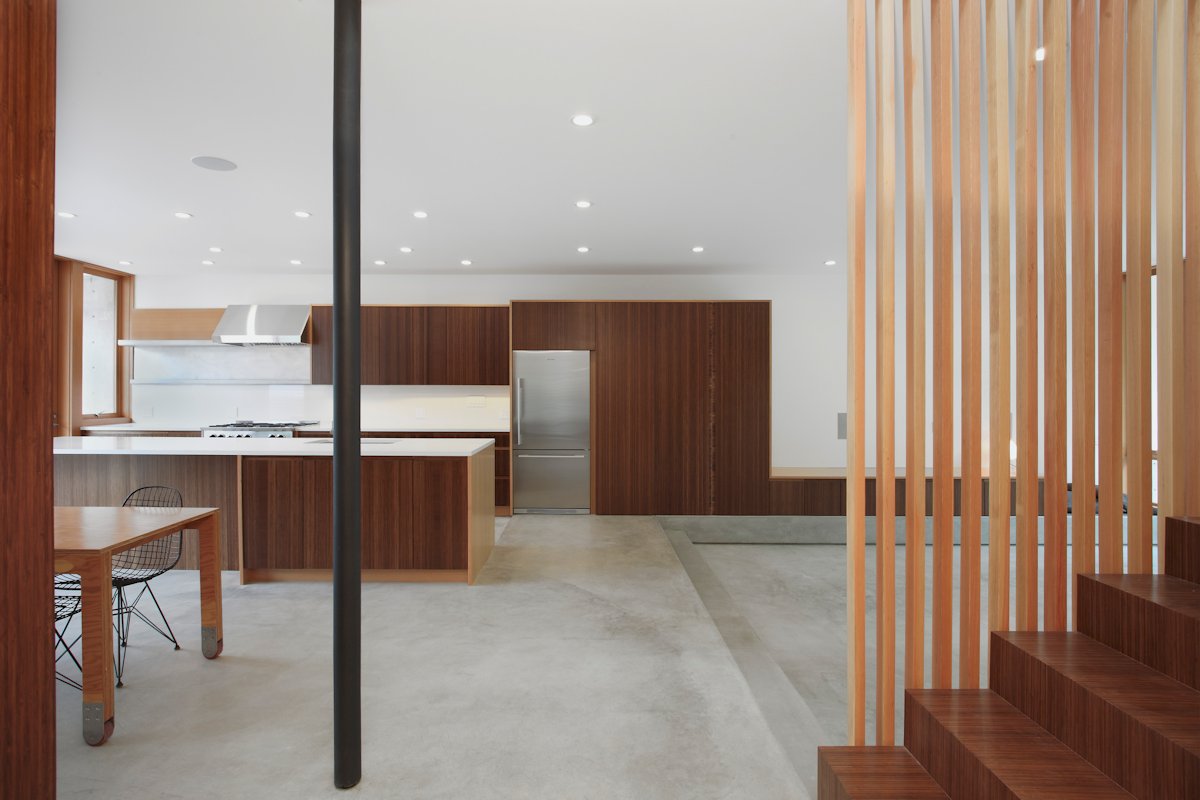

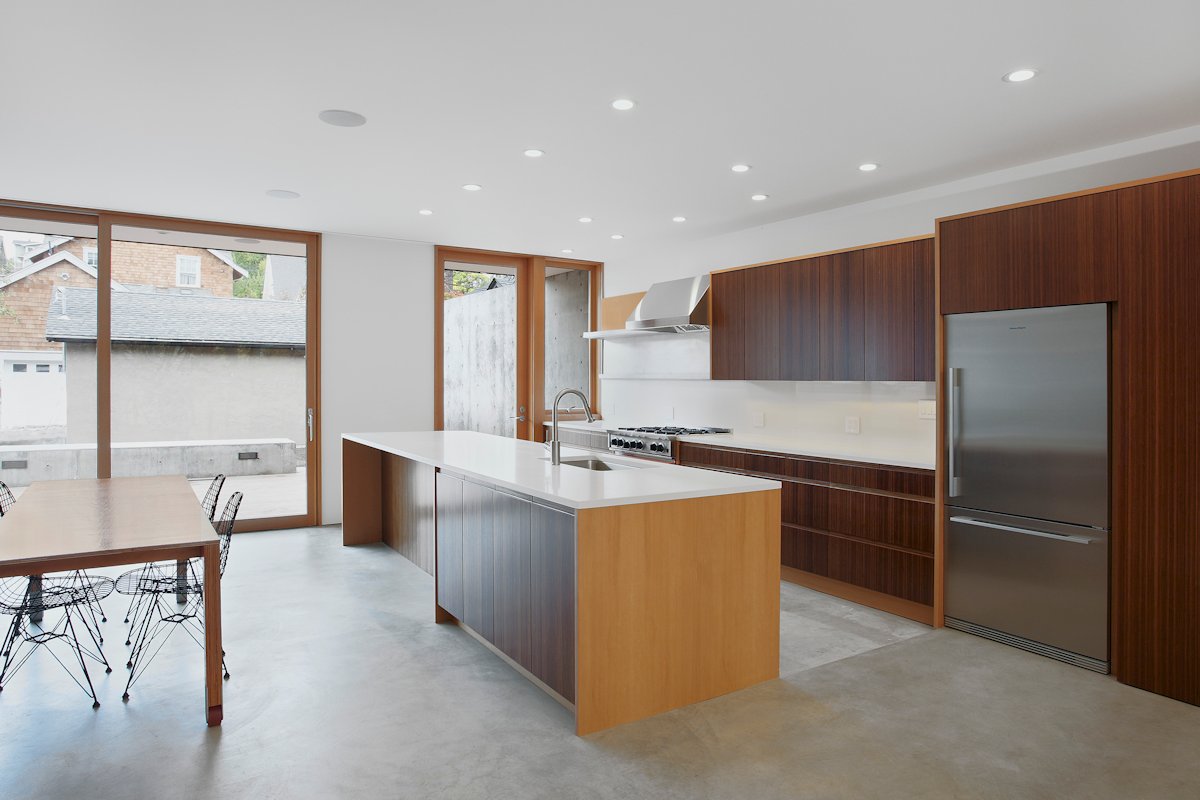

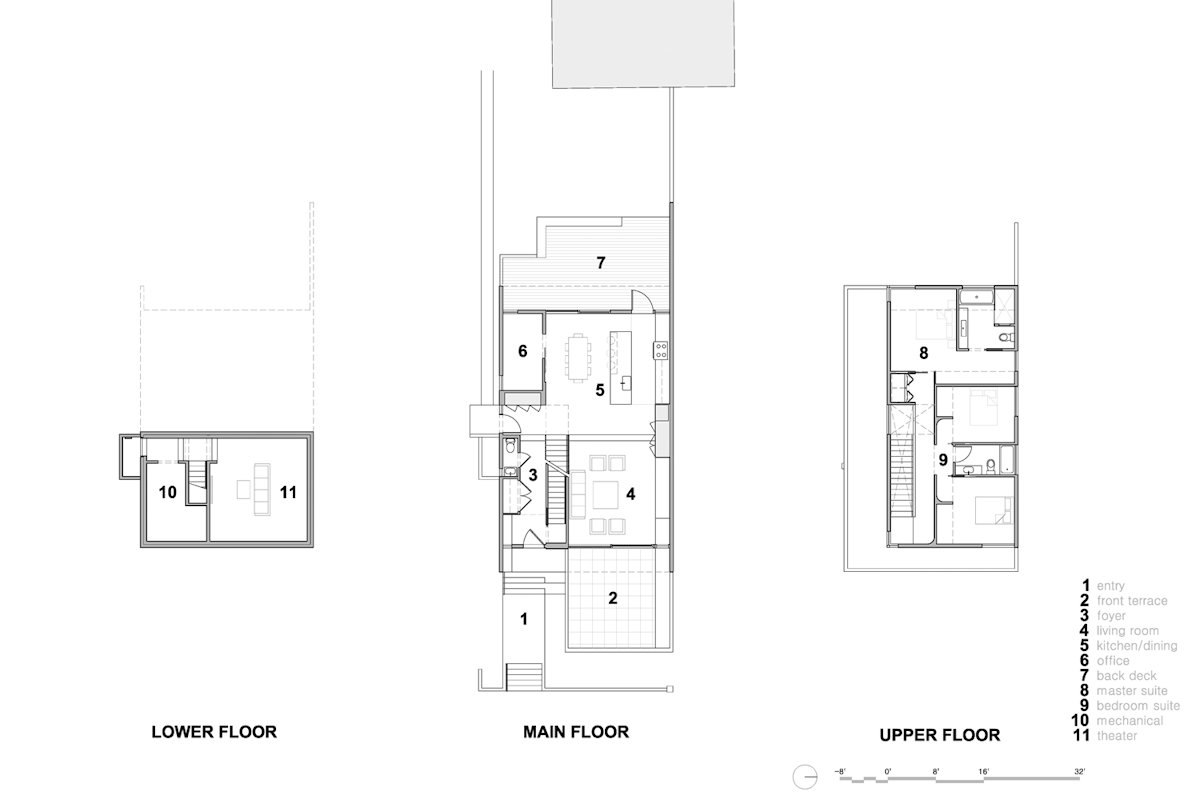

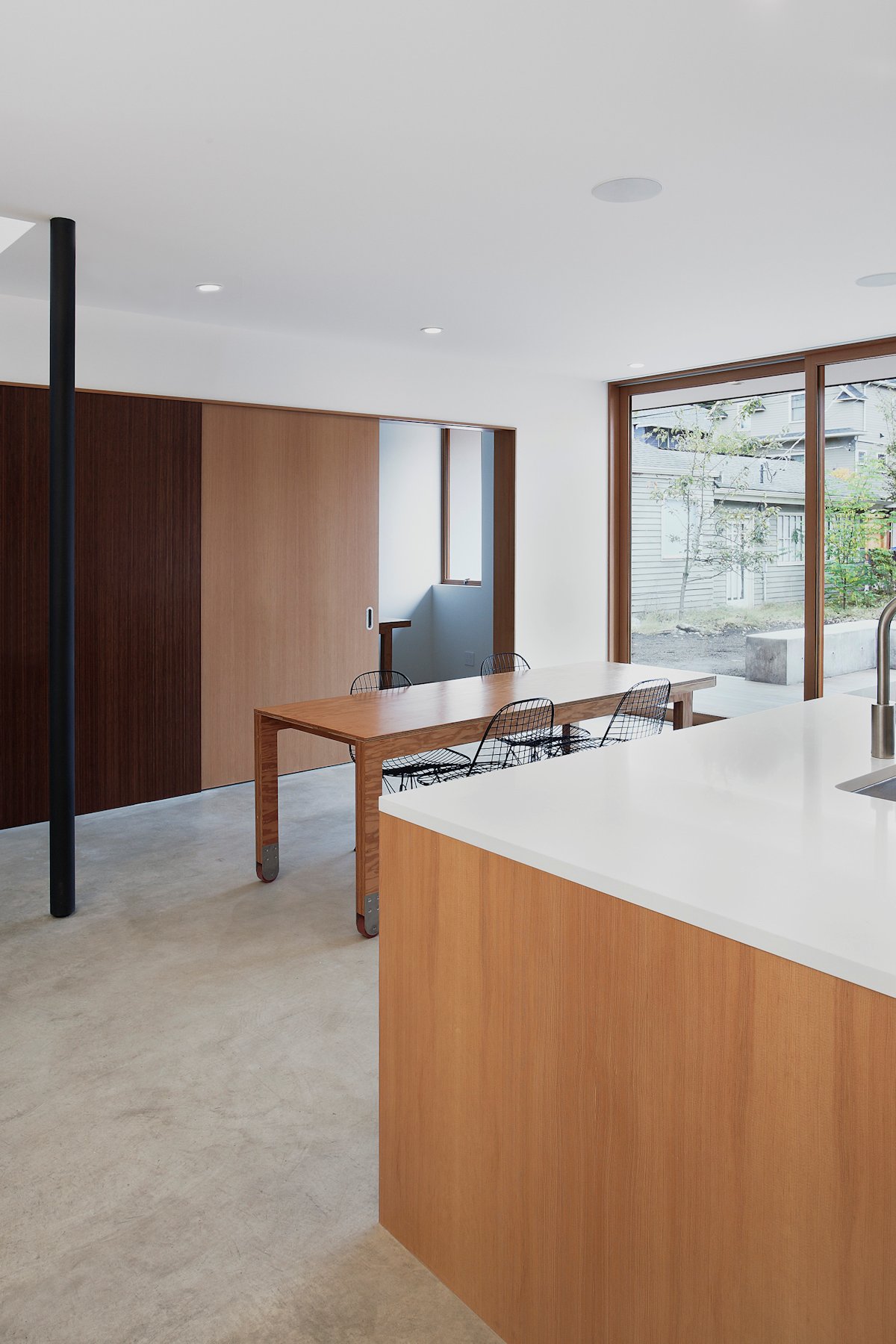

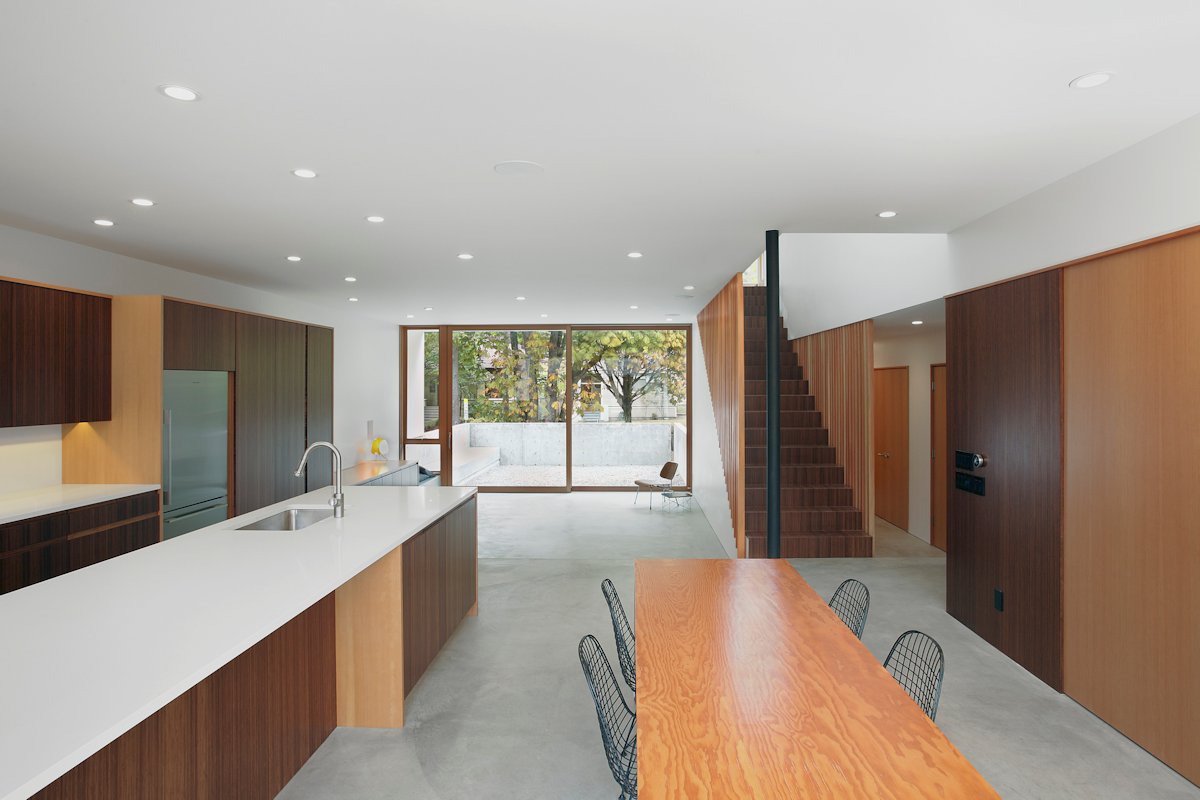

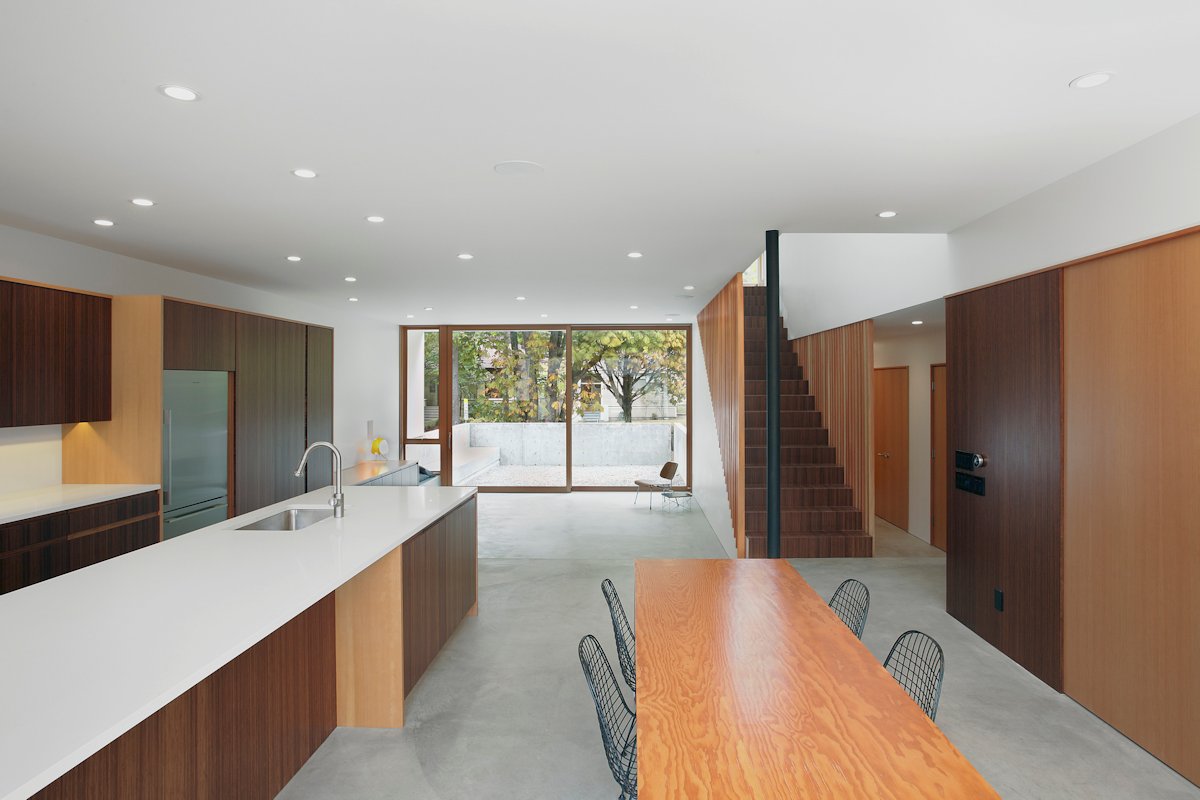

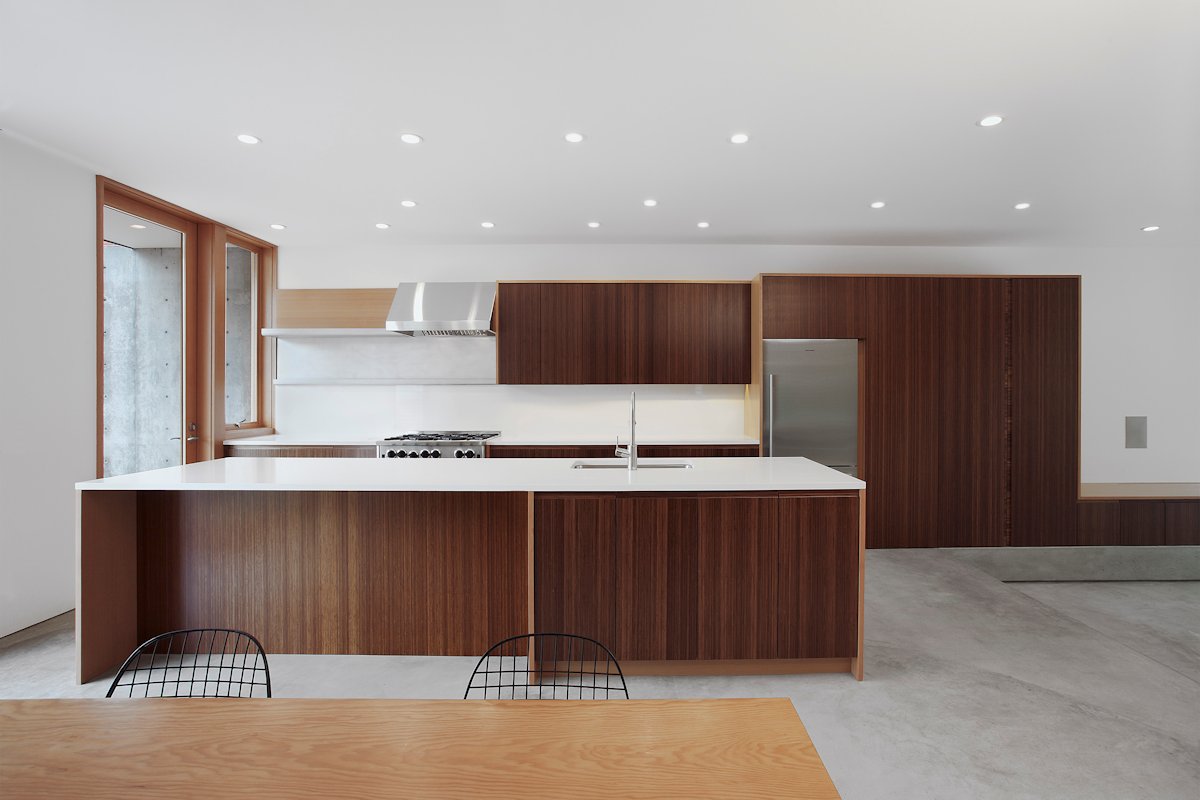

Our clients wanted an economical, efficient, low-maintenance house with ground floor living areas that extend out to comfortable outdoor spaces. The social family chef wanted the kitchen to occupy a central and commanding position in the house. Two kids rooms with a shared bath and a master suite on the upper floor and mechanical, storage, and media room in the basement round out the program.

Design

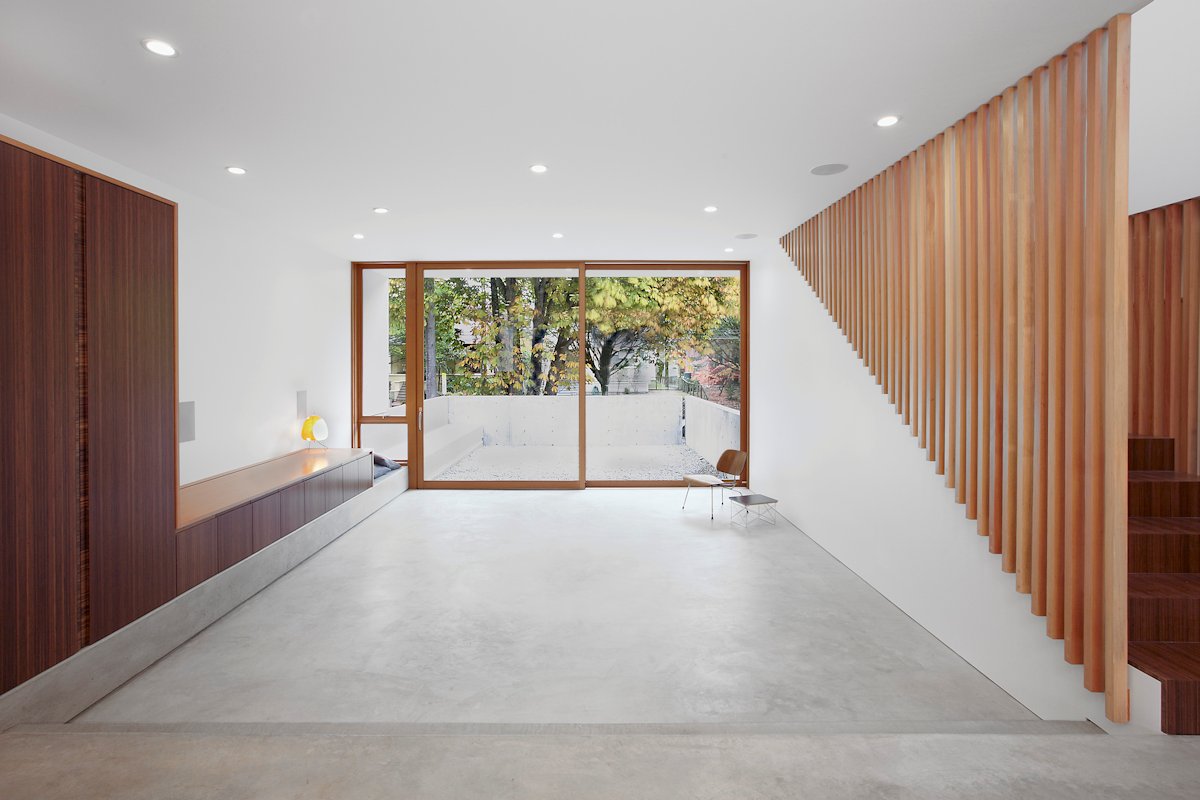

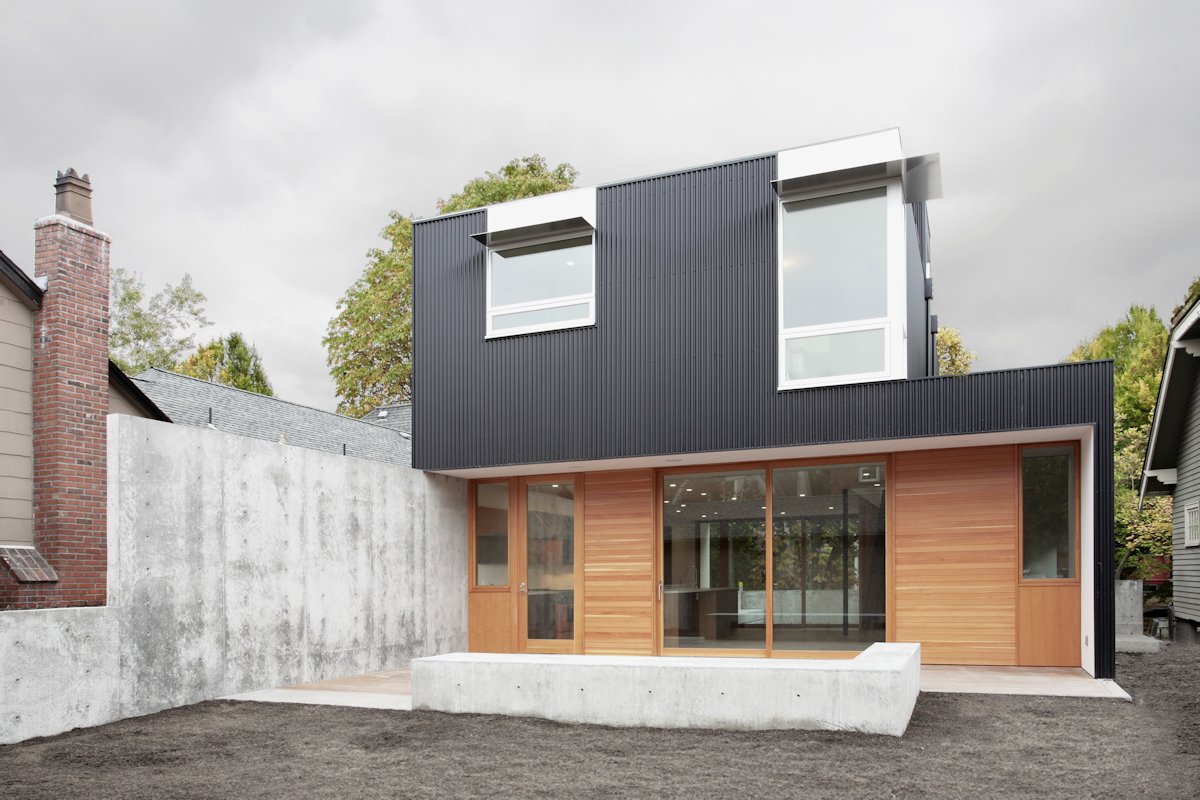

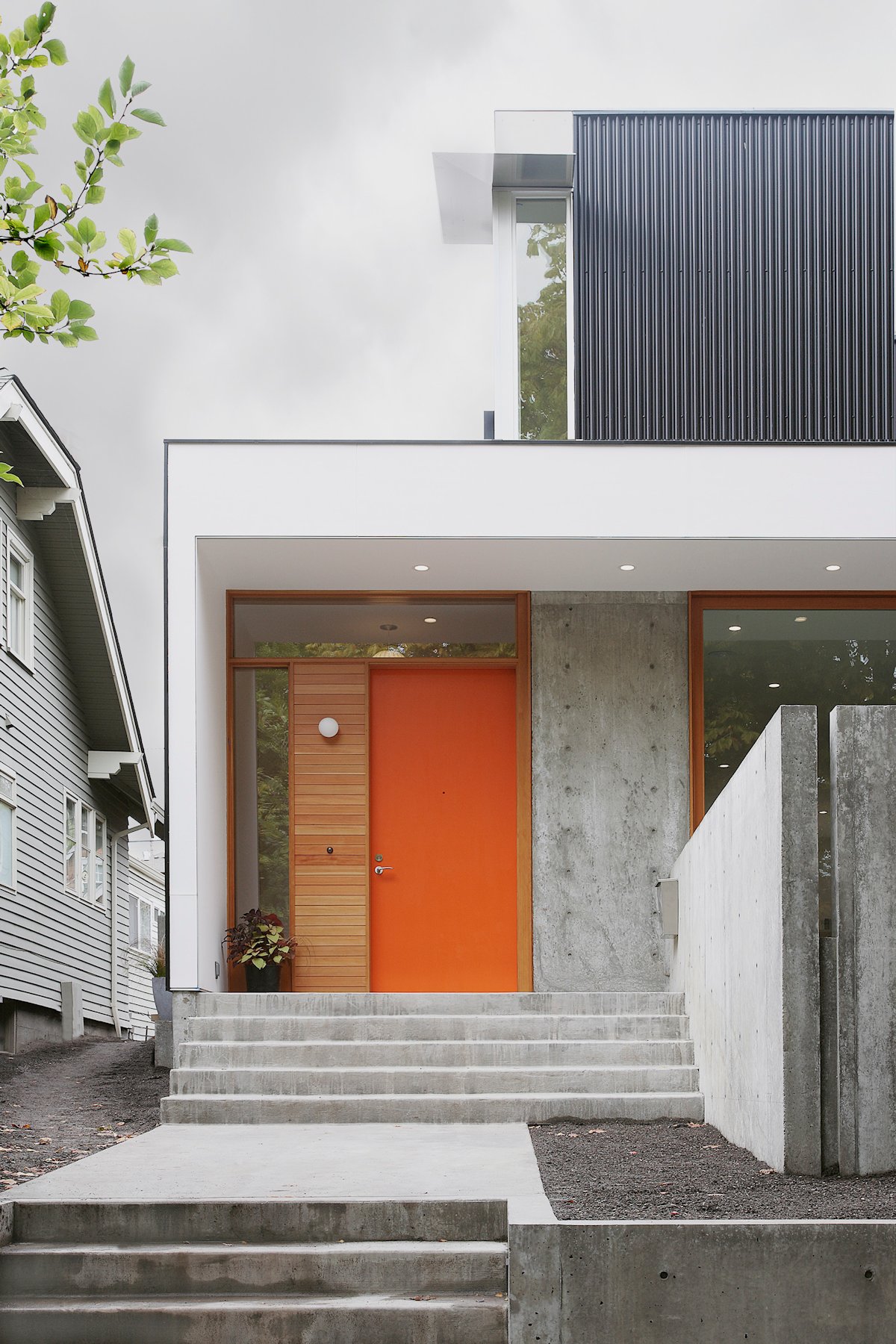

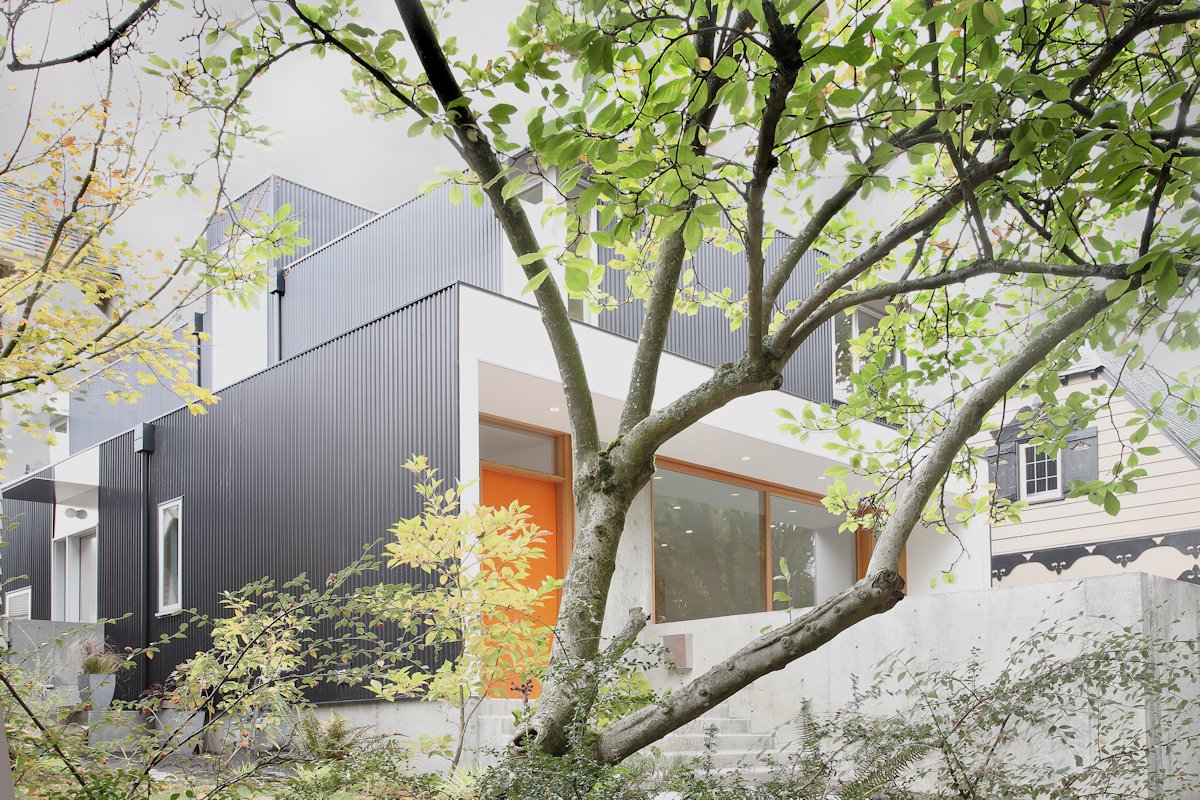

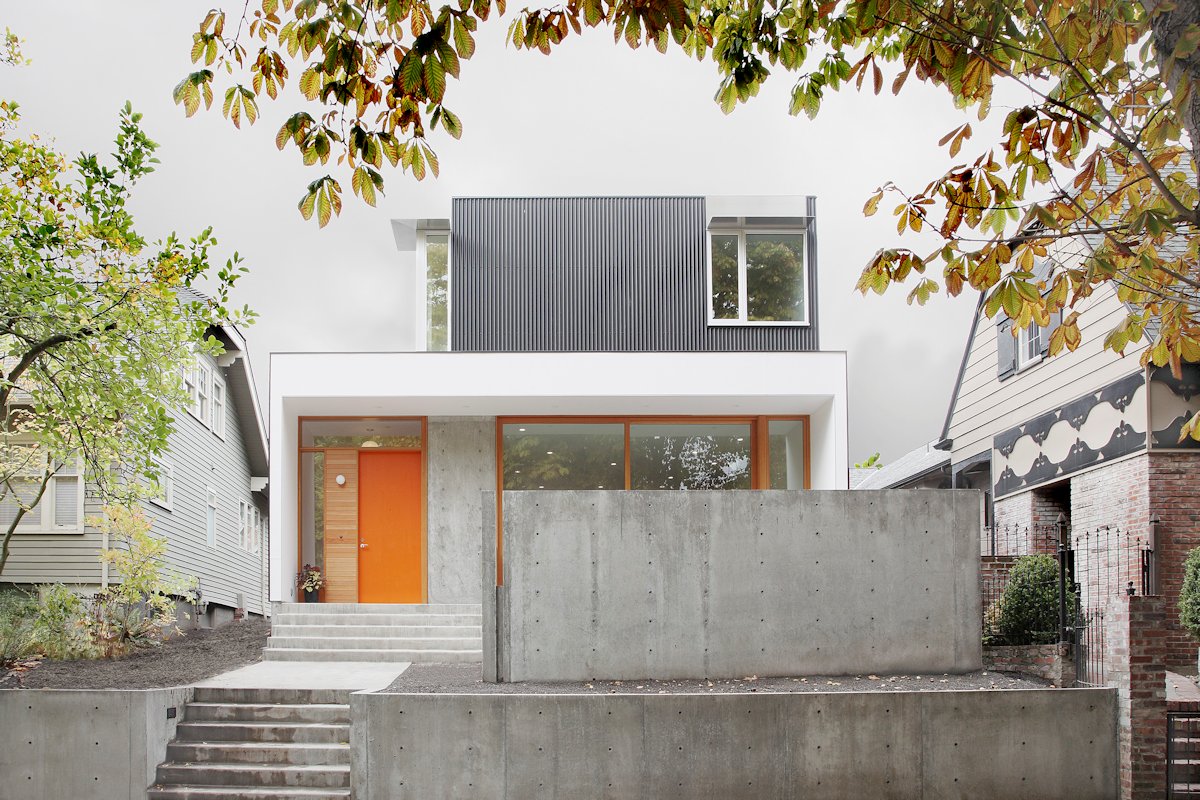

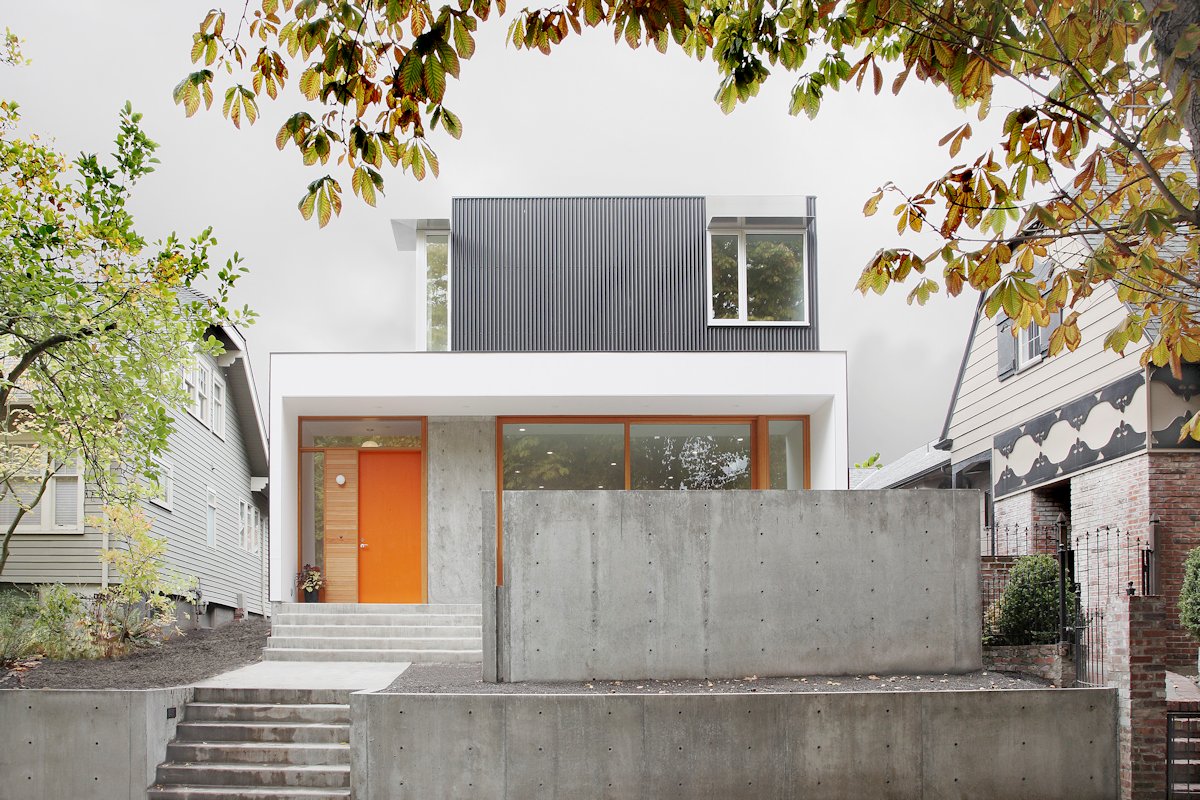

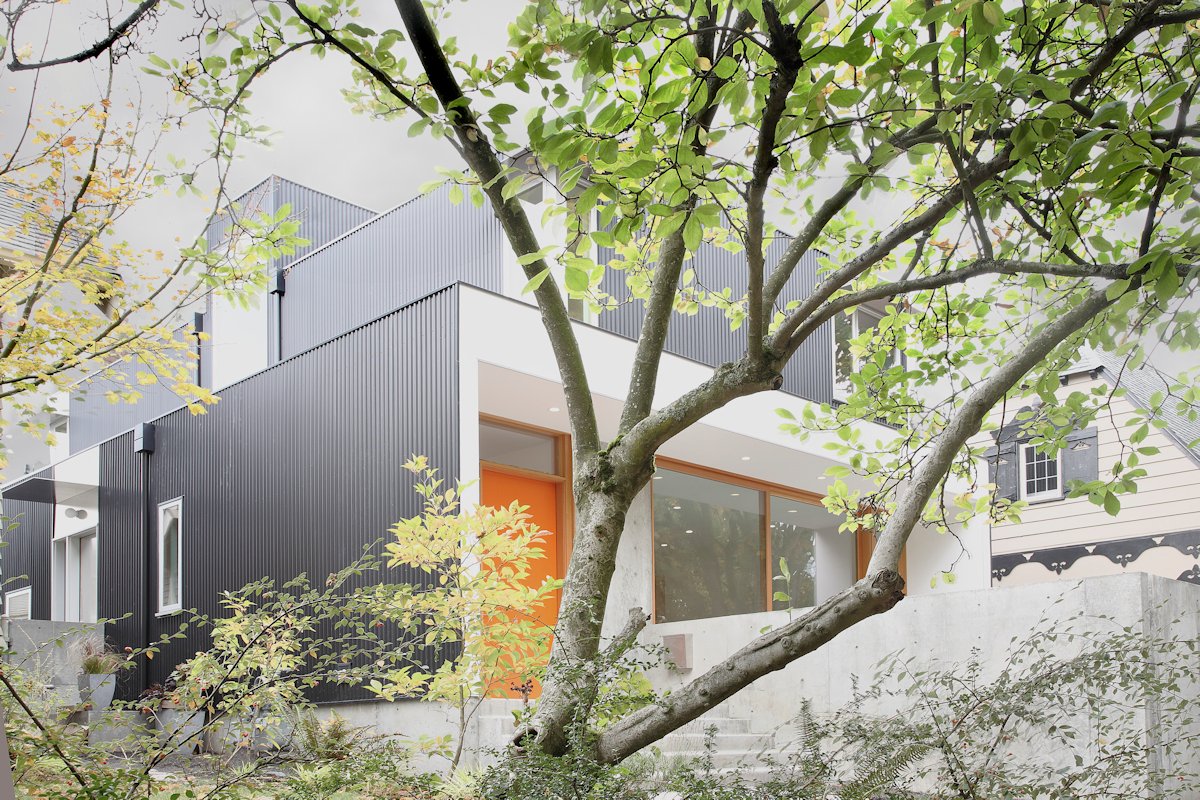

By focusing areas of glazing and extending the ceiling and walls beyond the line of enclosure the house establishes a strong connection to its front and rear yards while shielding its occupants from multi-family buildings along the sideyards. A walled and elevated terrace extending from the sunken living room claims the front yard as occupiable space and shields the living spaces from traffic on the arterial below. Corrugated metal siding and concrete site walls were used where privacy was desired, while wood windows, doors, and siding were used at the sheltered open ends where people interact directly with the building’s exterior.

Distinct Solutions

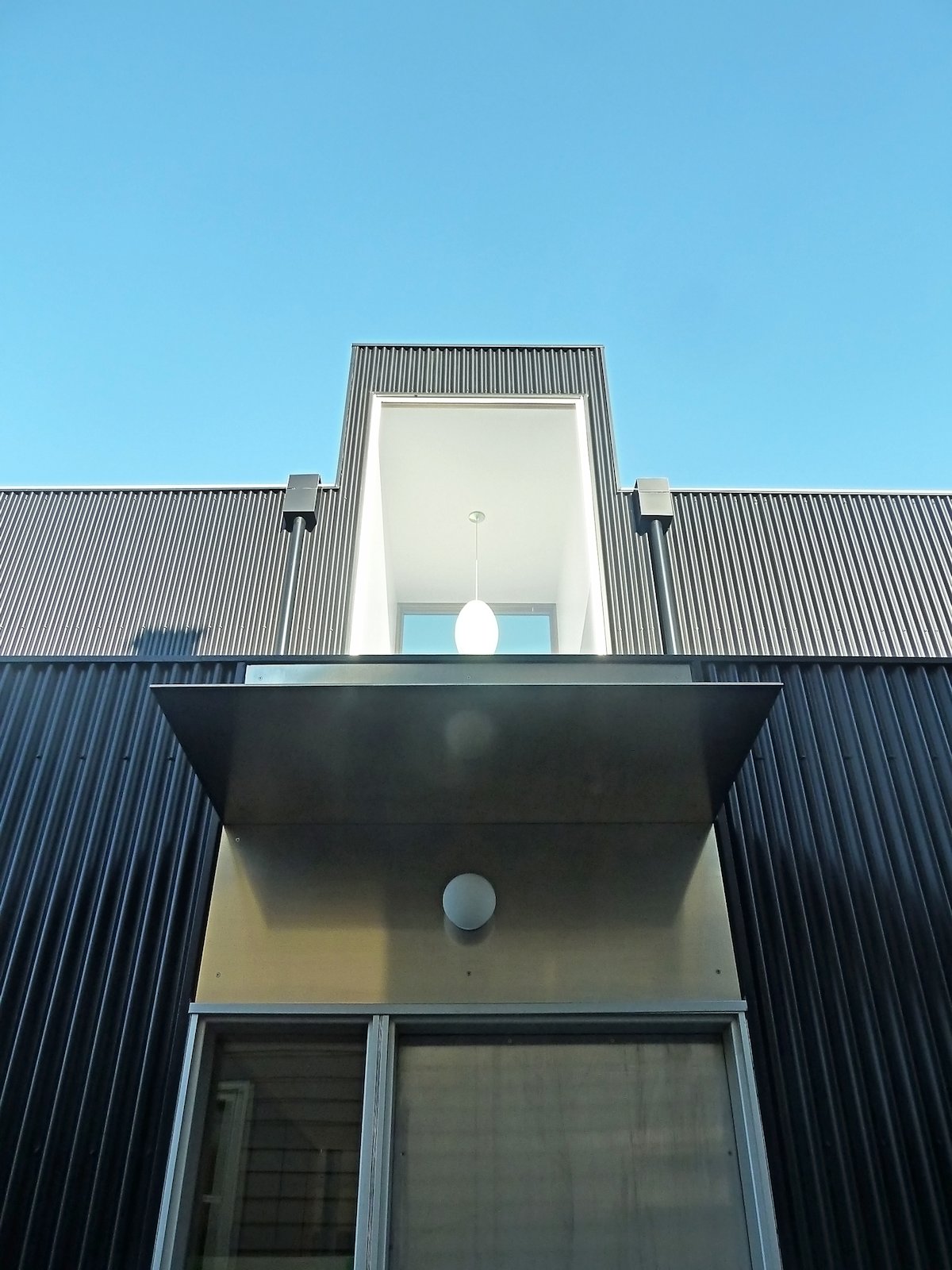

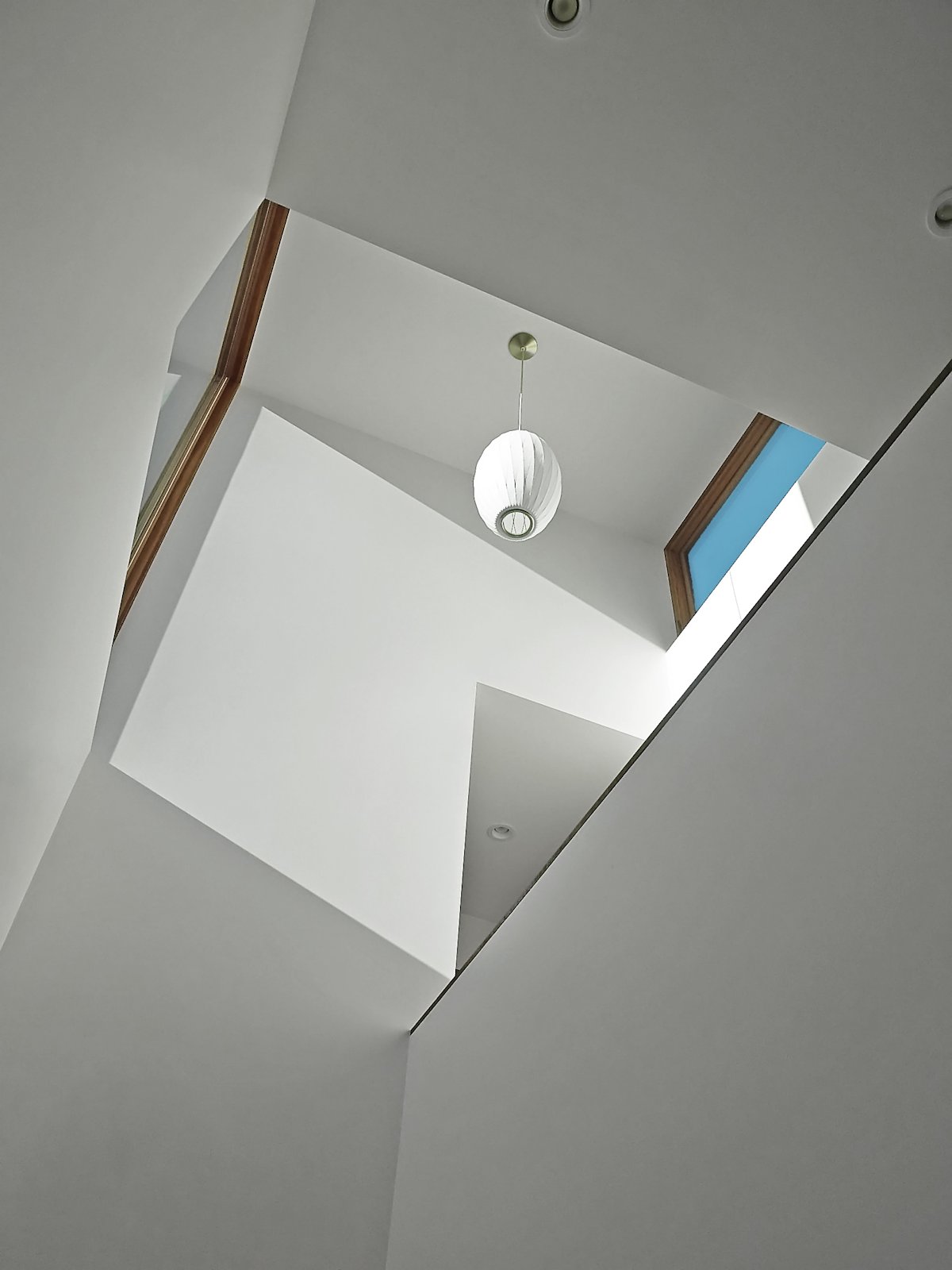

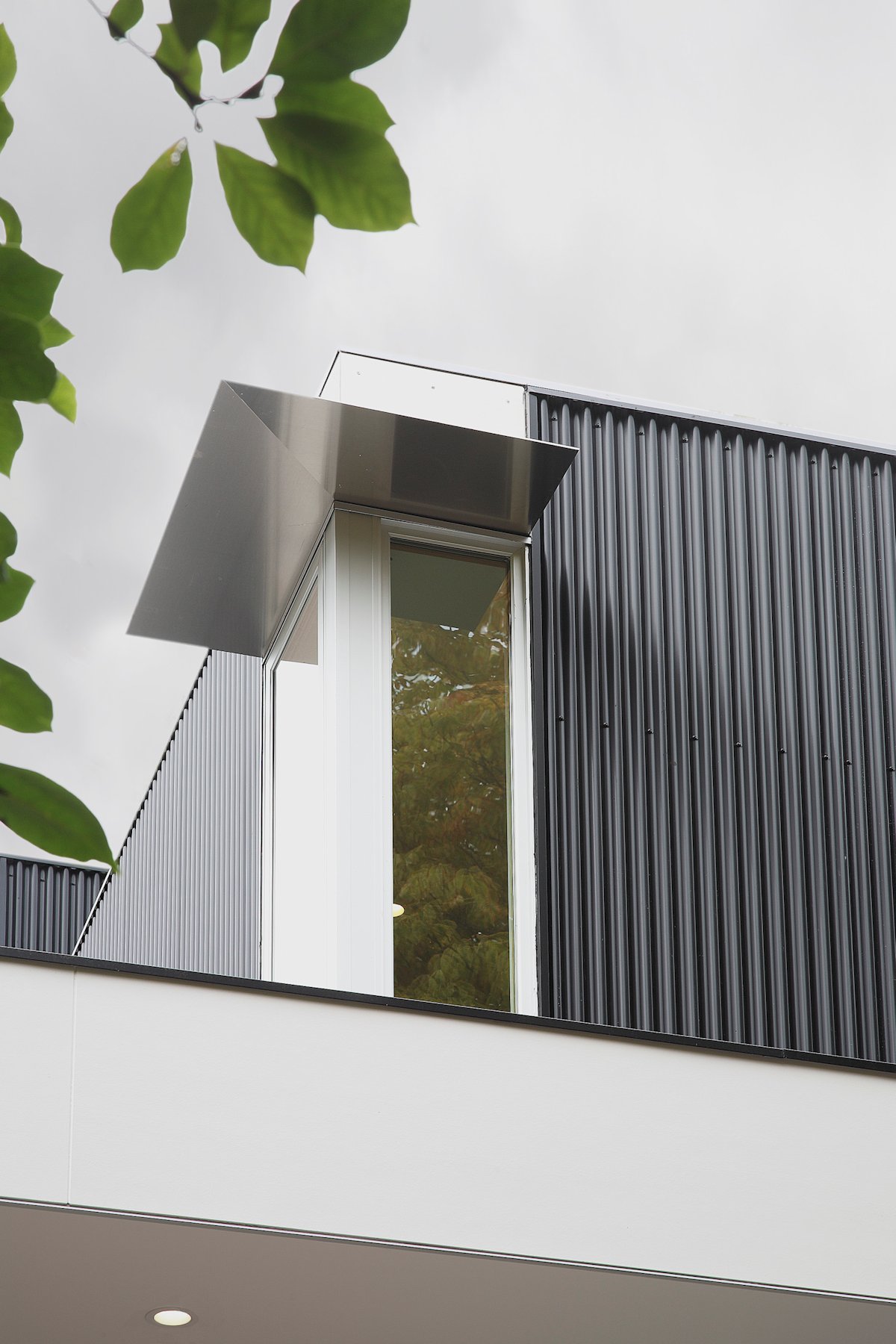

A high performance enclosure is achieved by Advanced Framing (requires up to 30% less lumber) and an effective combination of insulation products and methods. Triple-pane windows protected by aluminum plate ‘visors’ and metal siding create a low-maintenance envelope. A south-facing light monitor with a motorized north-facing awning window creates a stack effect for ventilation while providing ample daylight. Heating is supplied by a high-efficiency boiler, indirect water storage tank, and in-floor radiant heating controlled by programmable (Nest) thermostats. With the exception of select decorative fixtures, LED lighting was used throughout the house.

Design: SHED Architecture & Design
Contractor: Dolan Built, LLC
Structural Engineer: Harriott Valentine Engineers
Photography: Mark Woods
