Glebe House by Nobbs Radford Architects

November 12, 2014

Nobbs Radford Architects have designed the Glebe House in Sydney, Australia.

gh_121114_01

gh_121114_03

gh_121114_06

gh_121114_09

gh_121114_10

gh_121114_11

gh_121114_13

gh_121114_15

gh_121114_16

gh_121114_17

gh_121114_20

From the architects

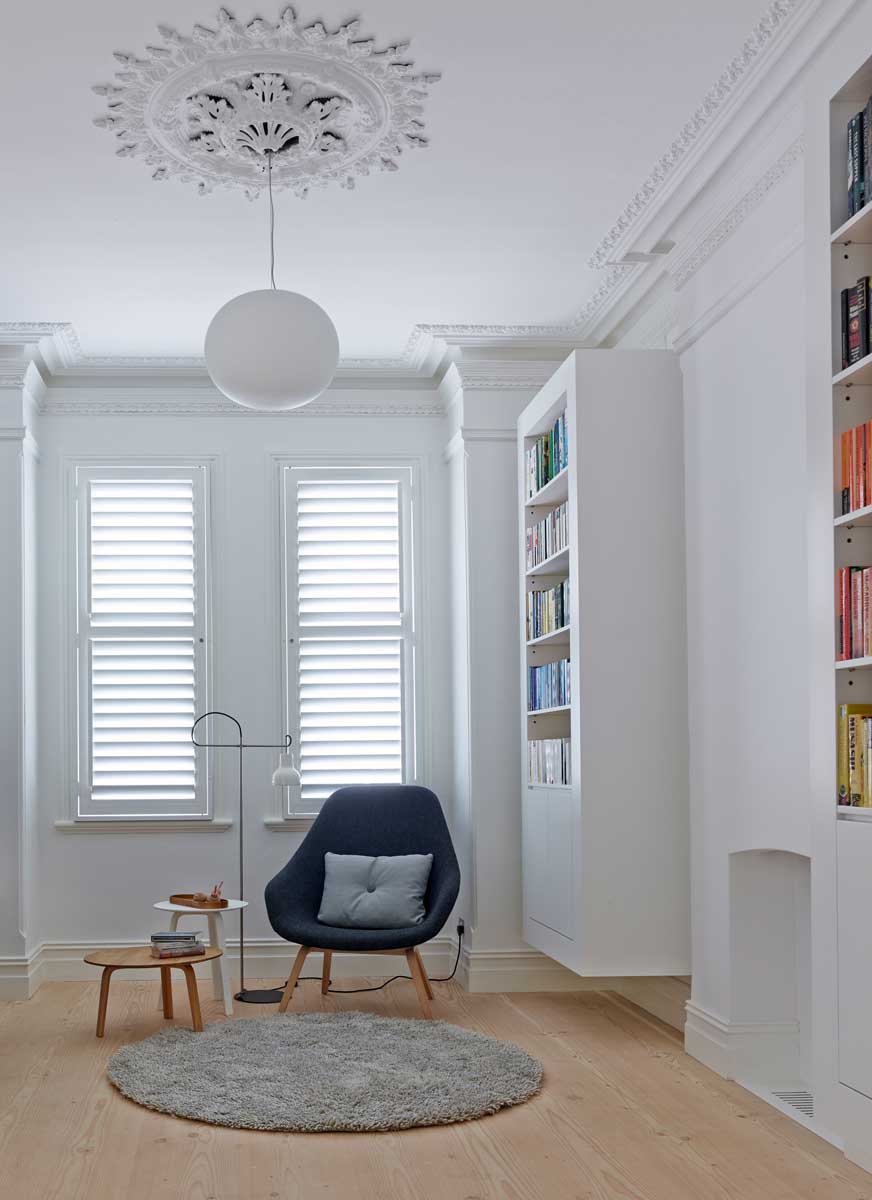

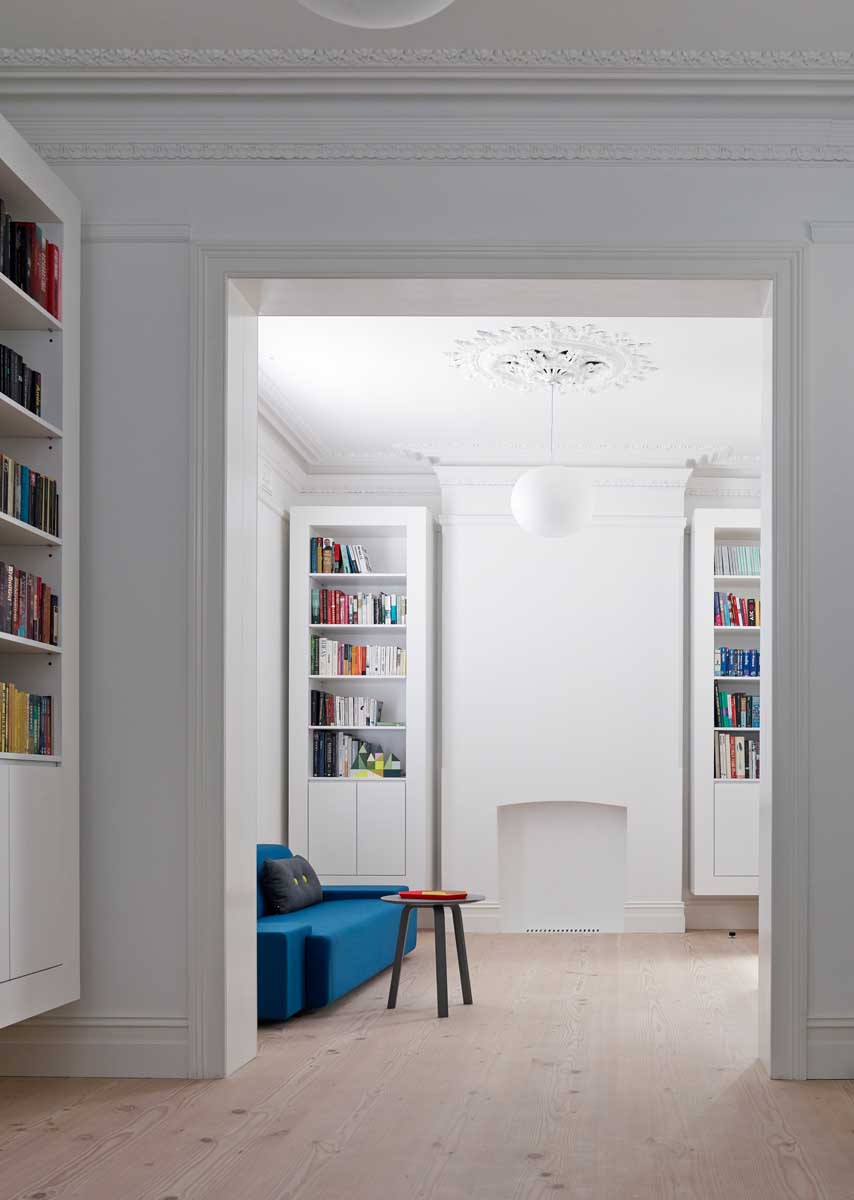

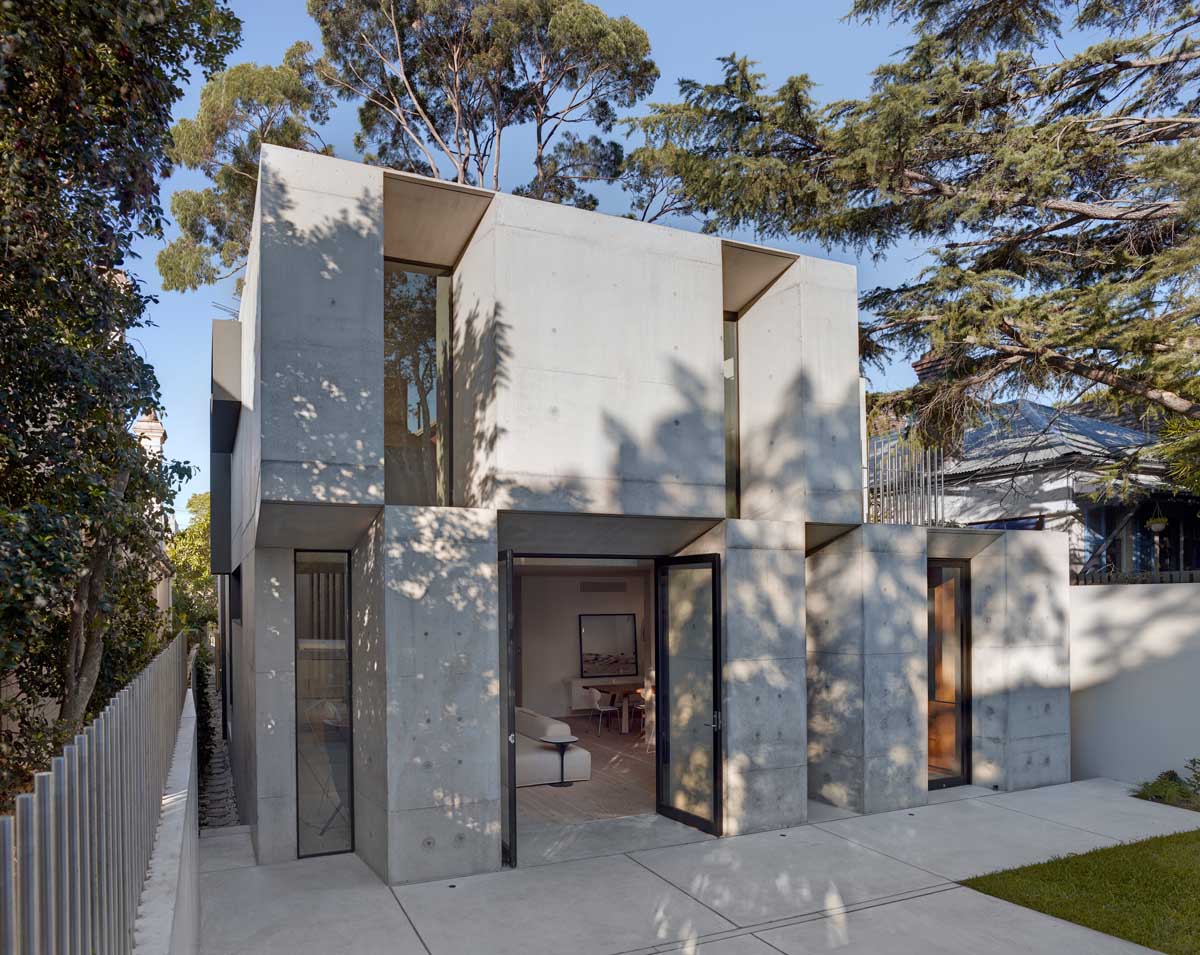

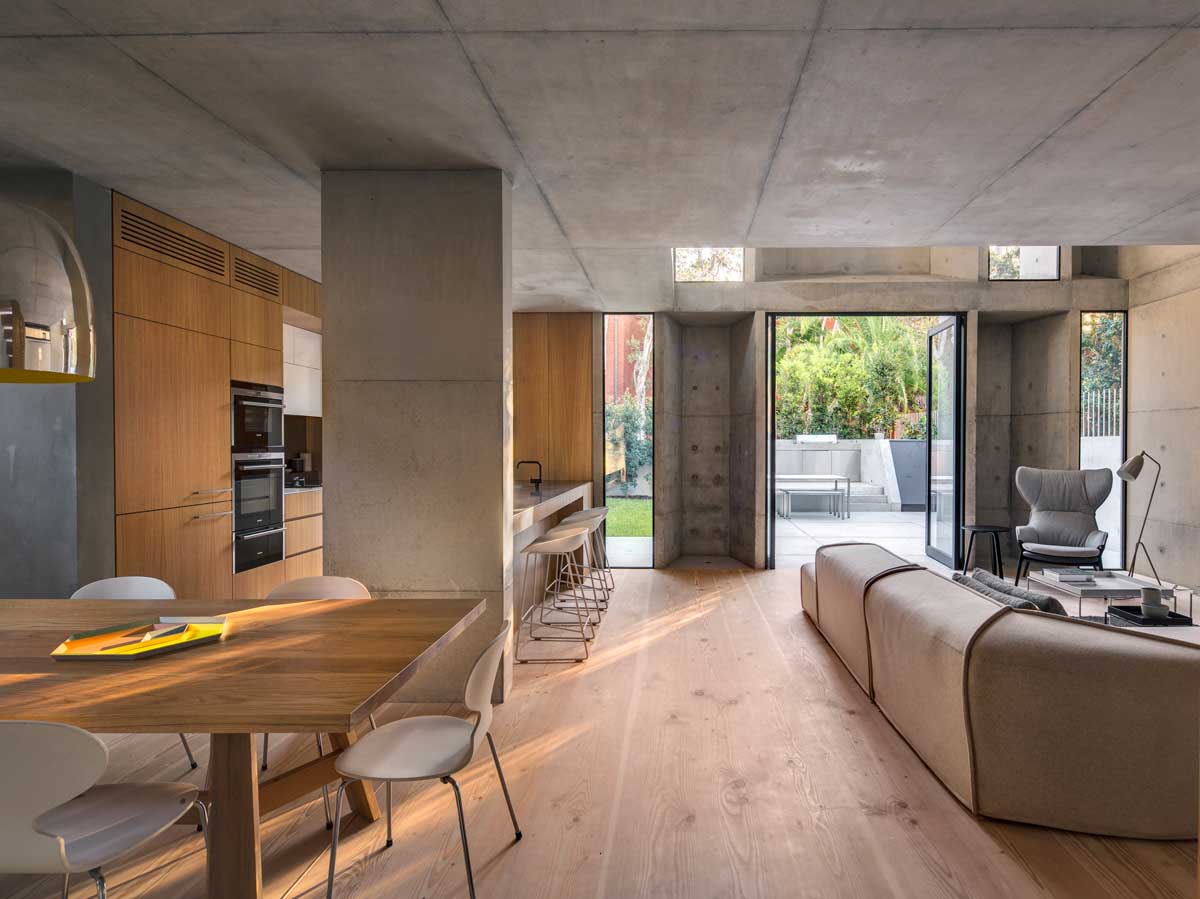

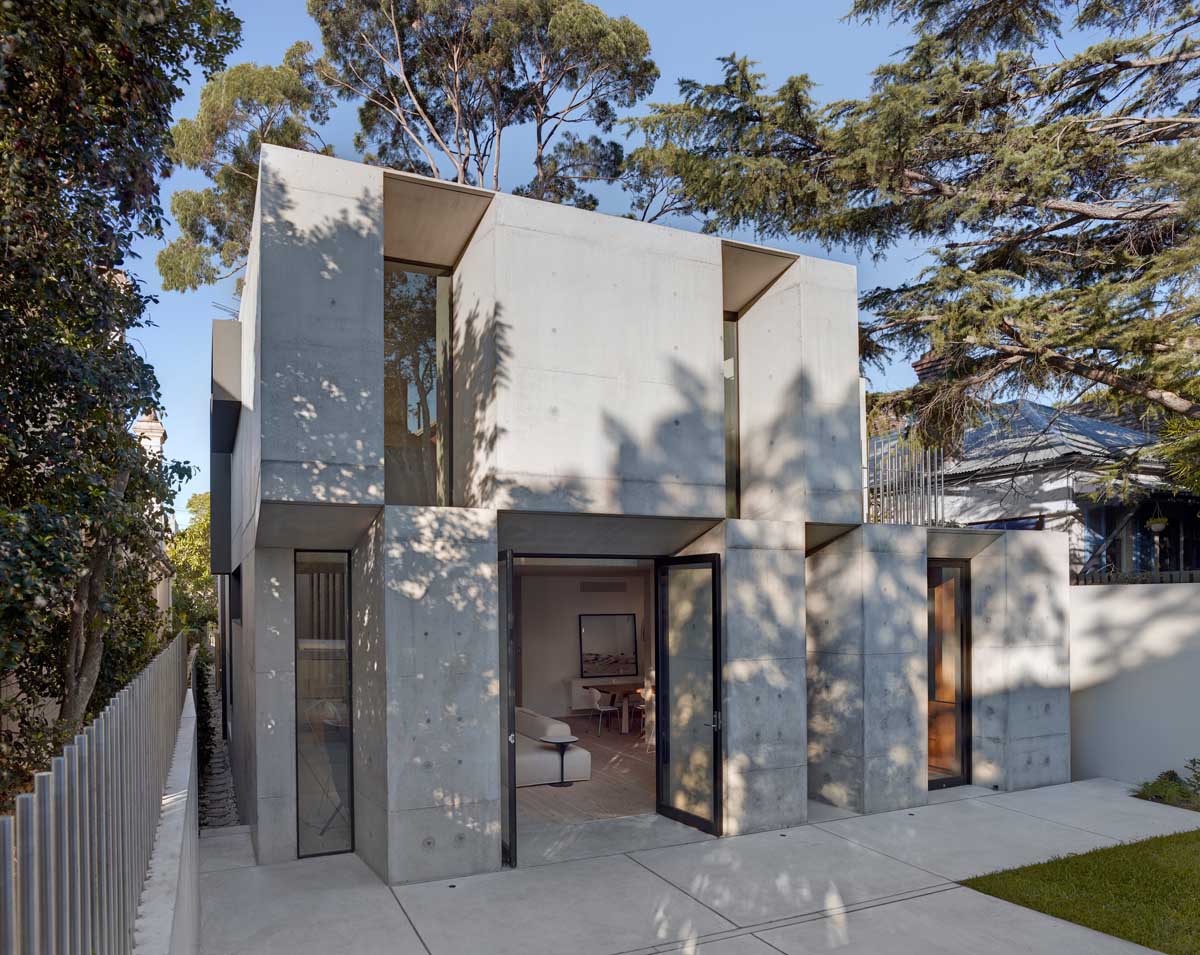

It was felt important from the outset that the new works drew from the original house as a basis for investigation, concrete as a heavy material was selected over framed construction. The new works boldly reinterprets the structure and materiality of the elements that make up the original Victorian era cottage. The off form concrete draws on the solidity of the original masonry structure whilst introducing a new materiality. The narrow openings of the original facade are reinterpreted in similarly proportioned forms for a new period. An emphasis on vertical openings creates an alliance with the original fenestration.

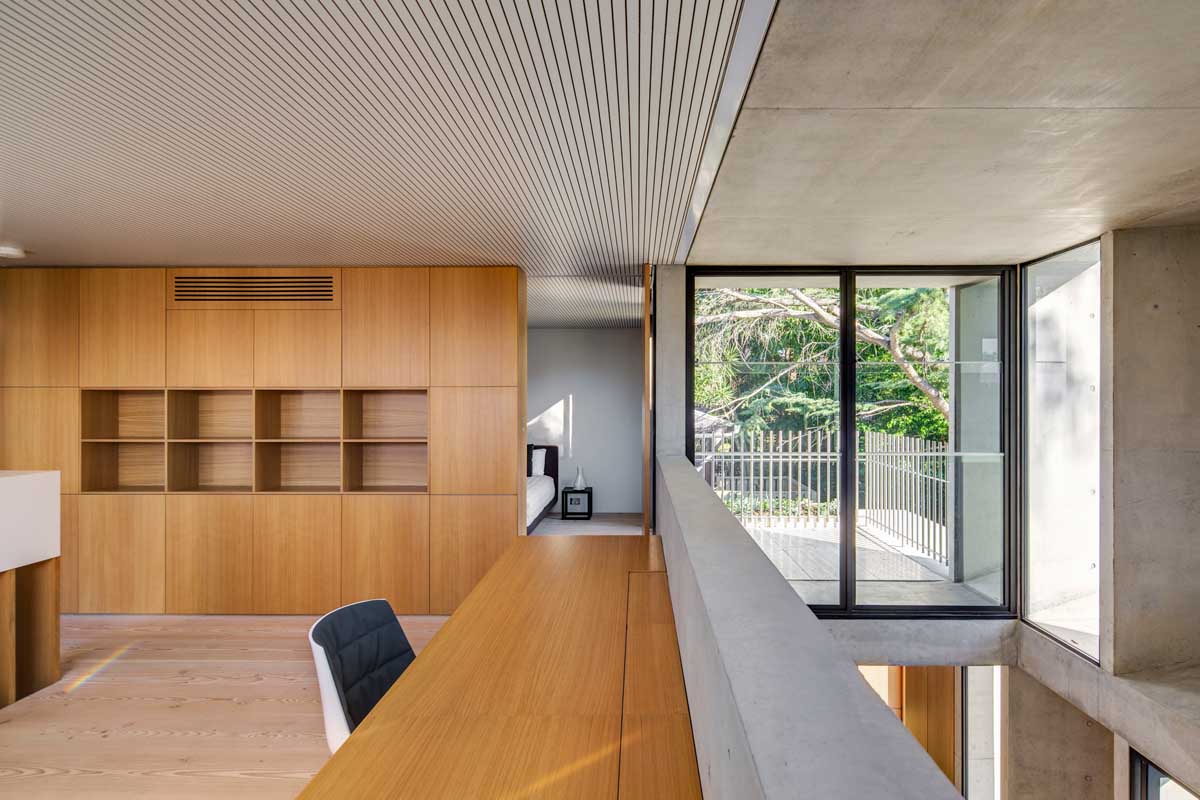

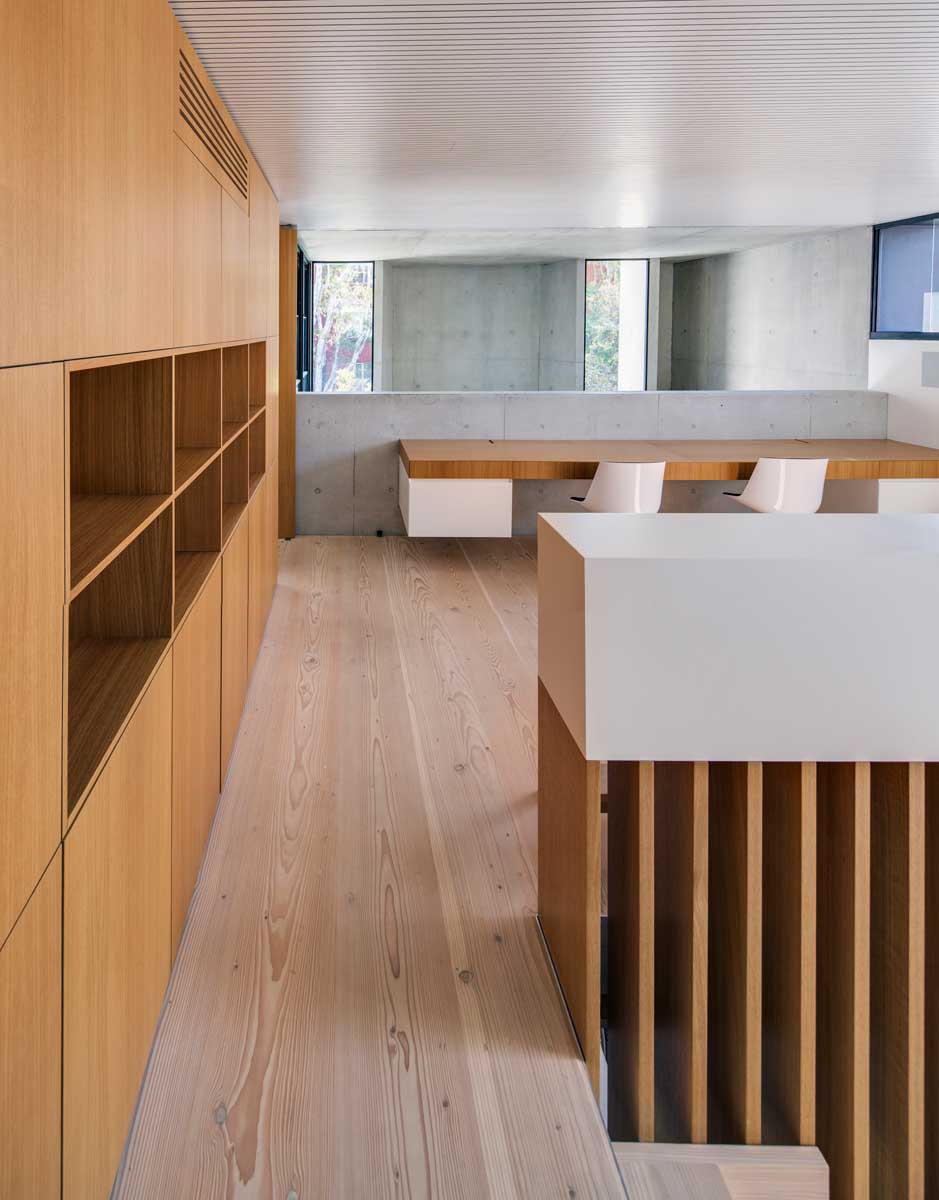

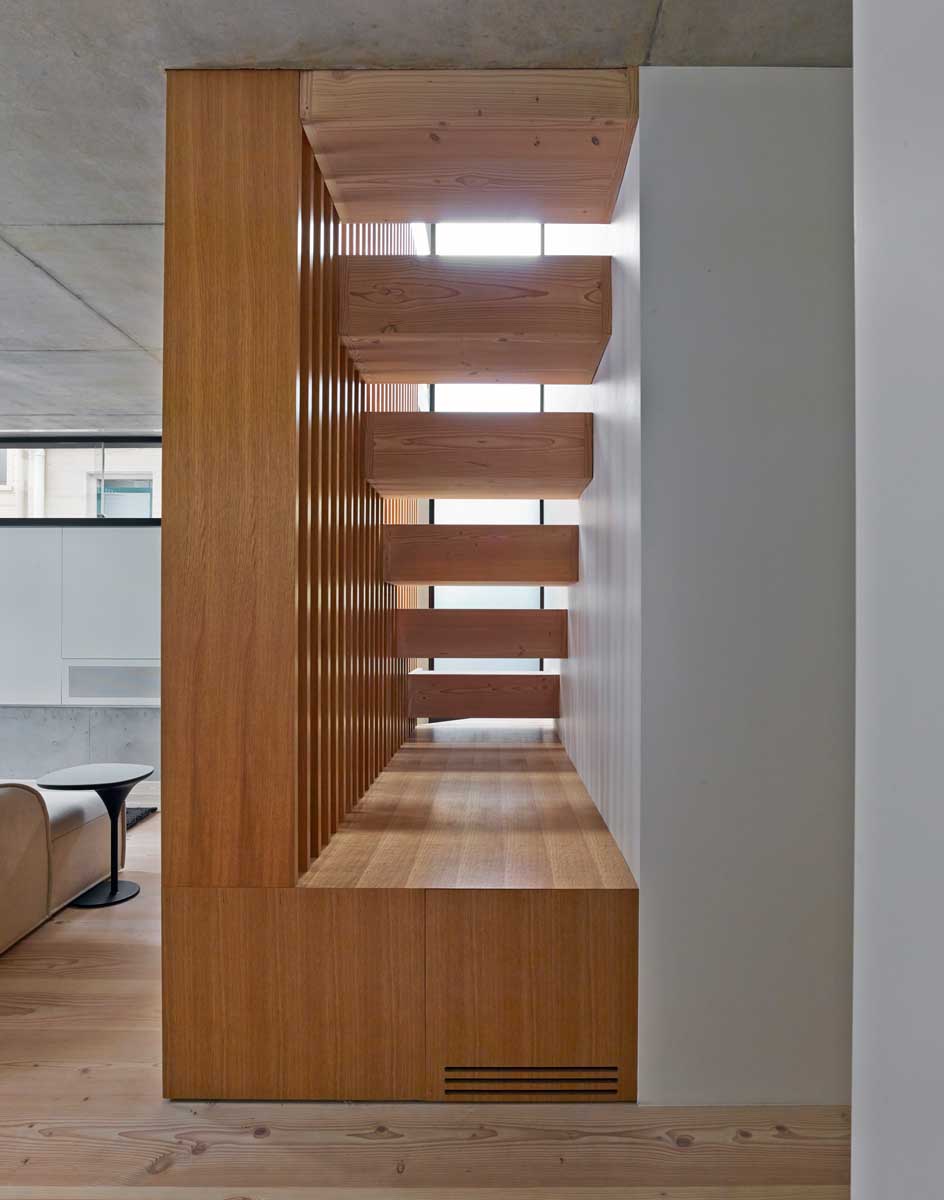

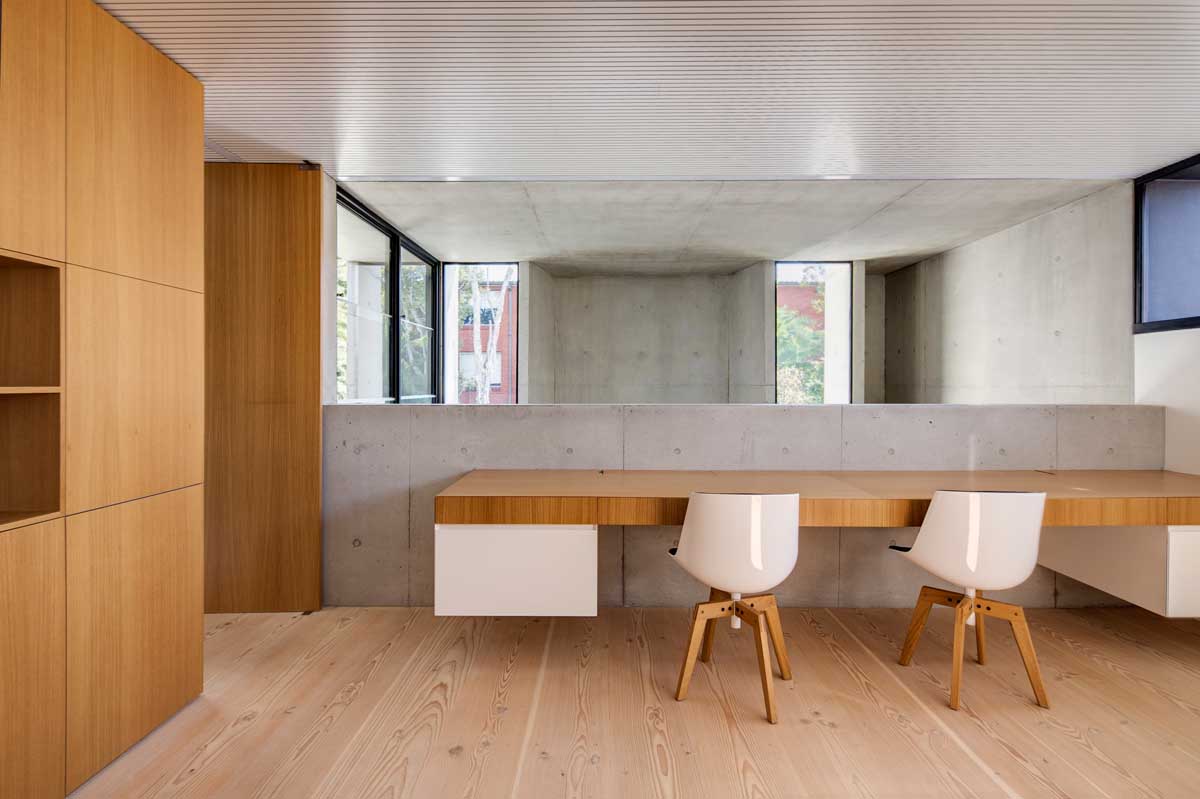

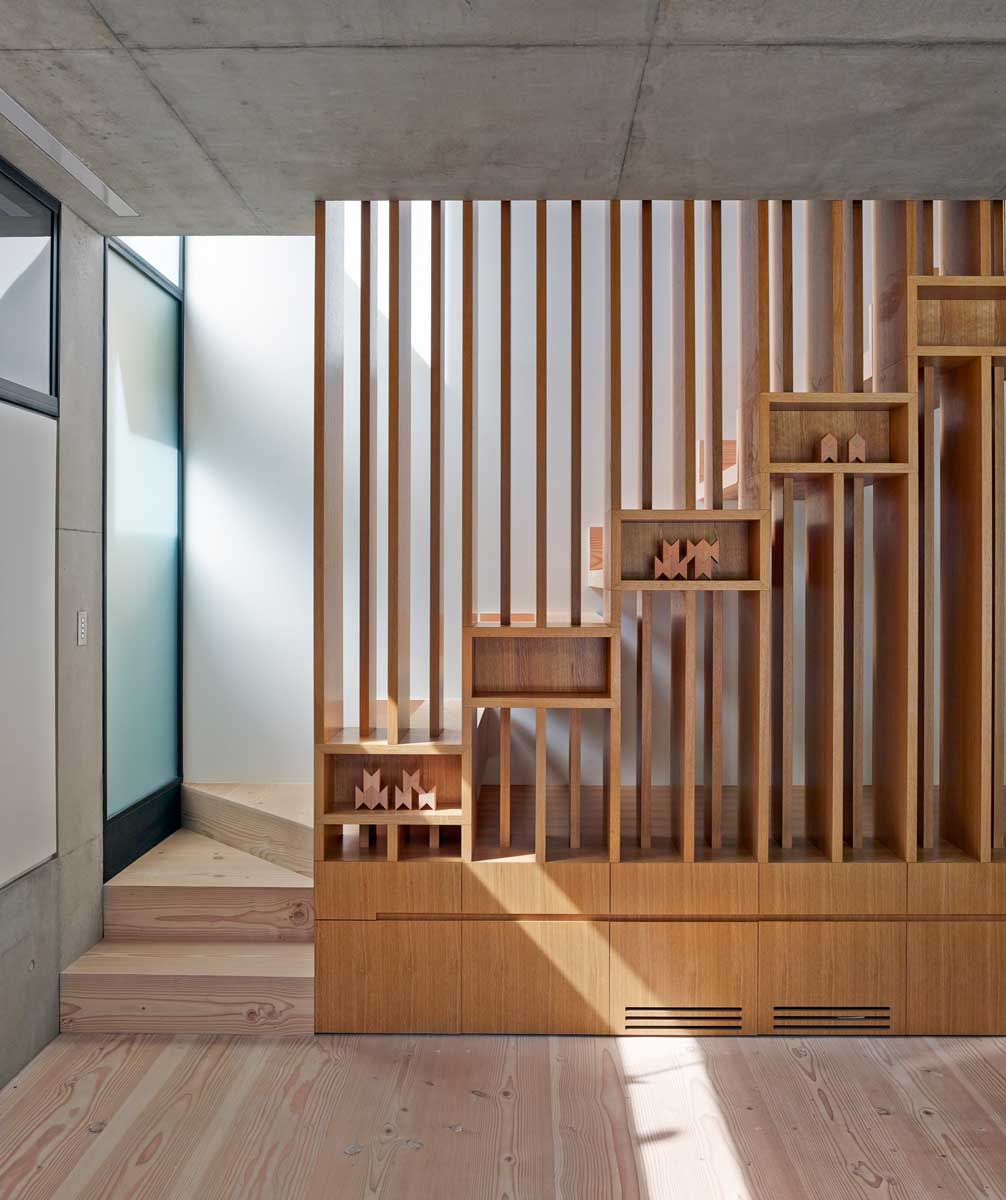

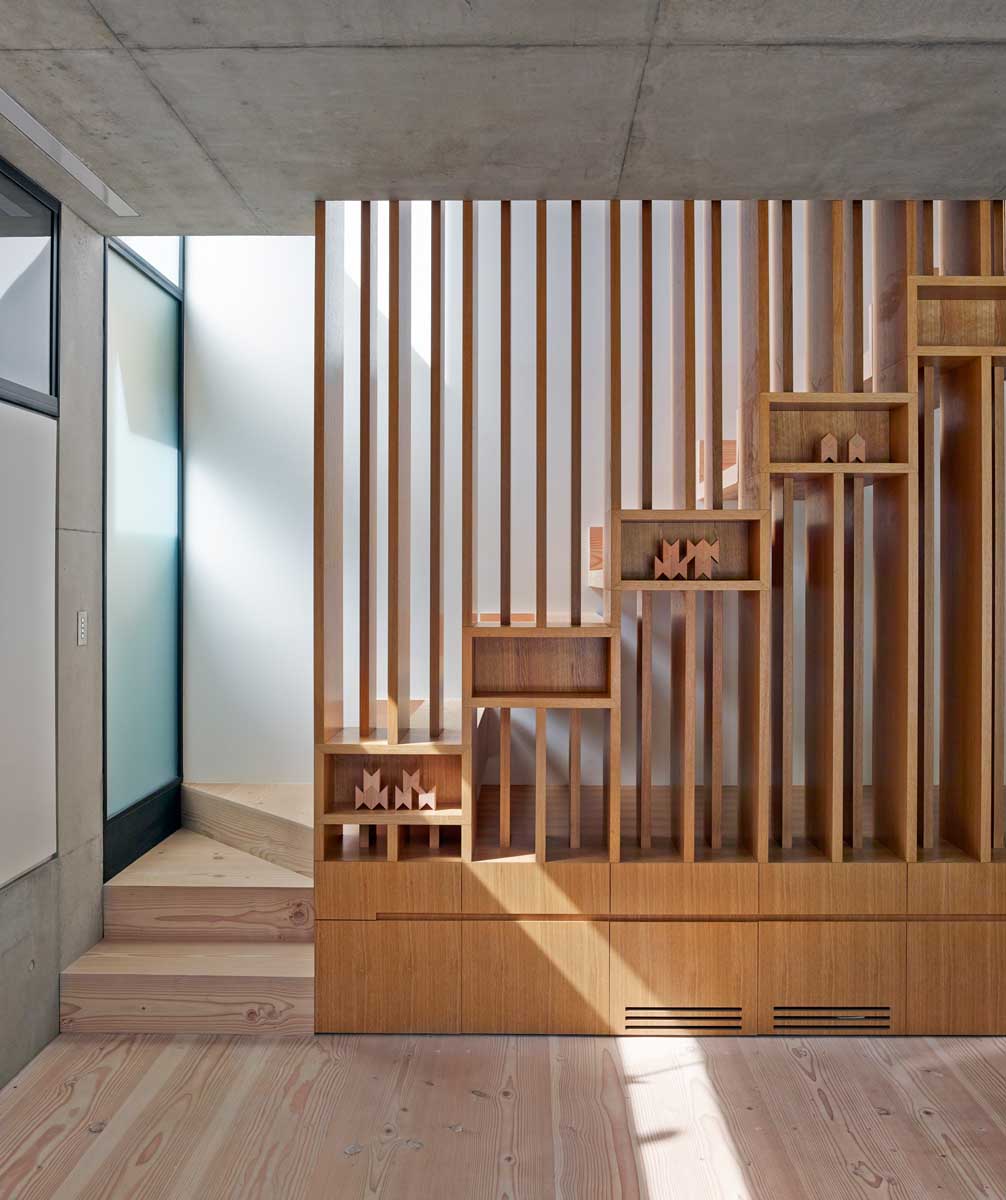

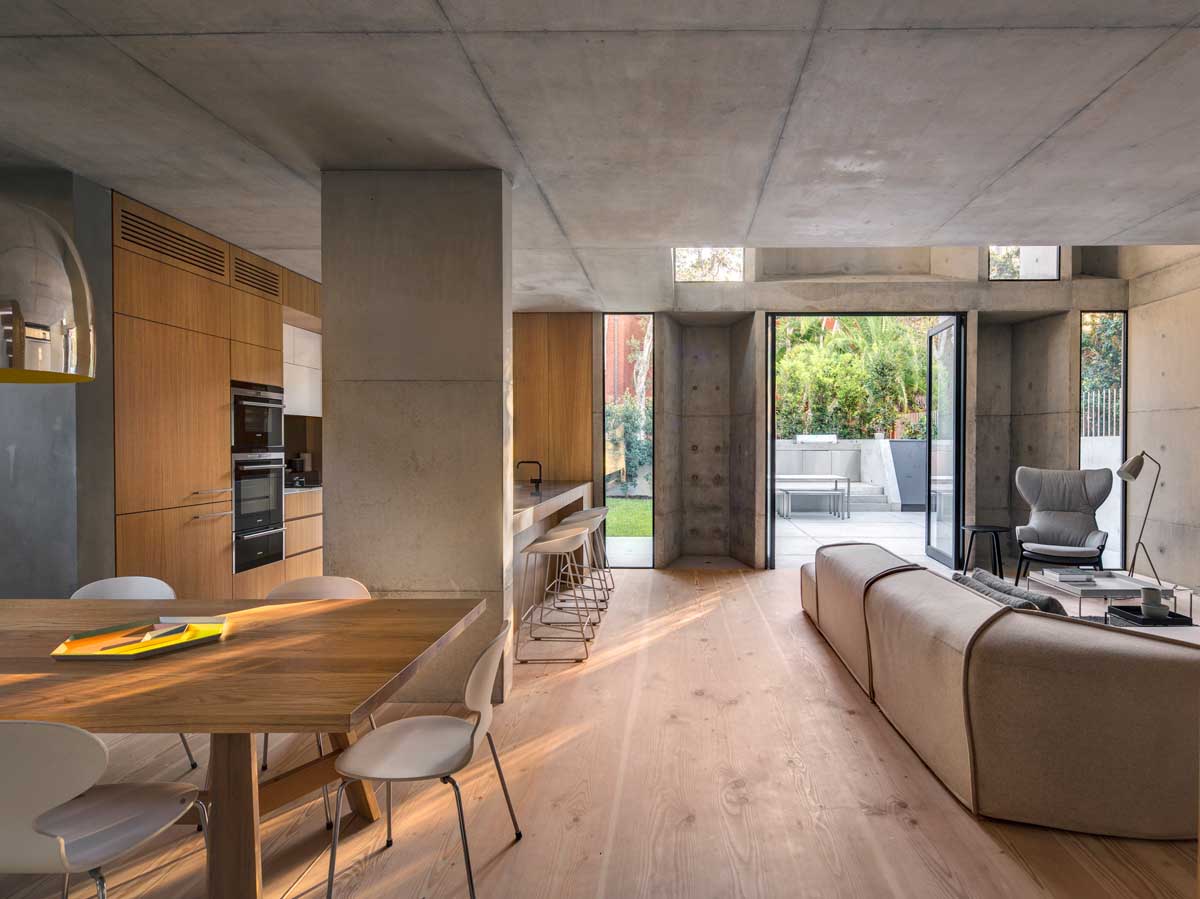

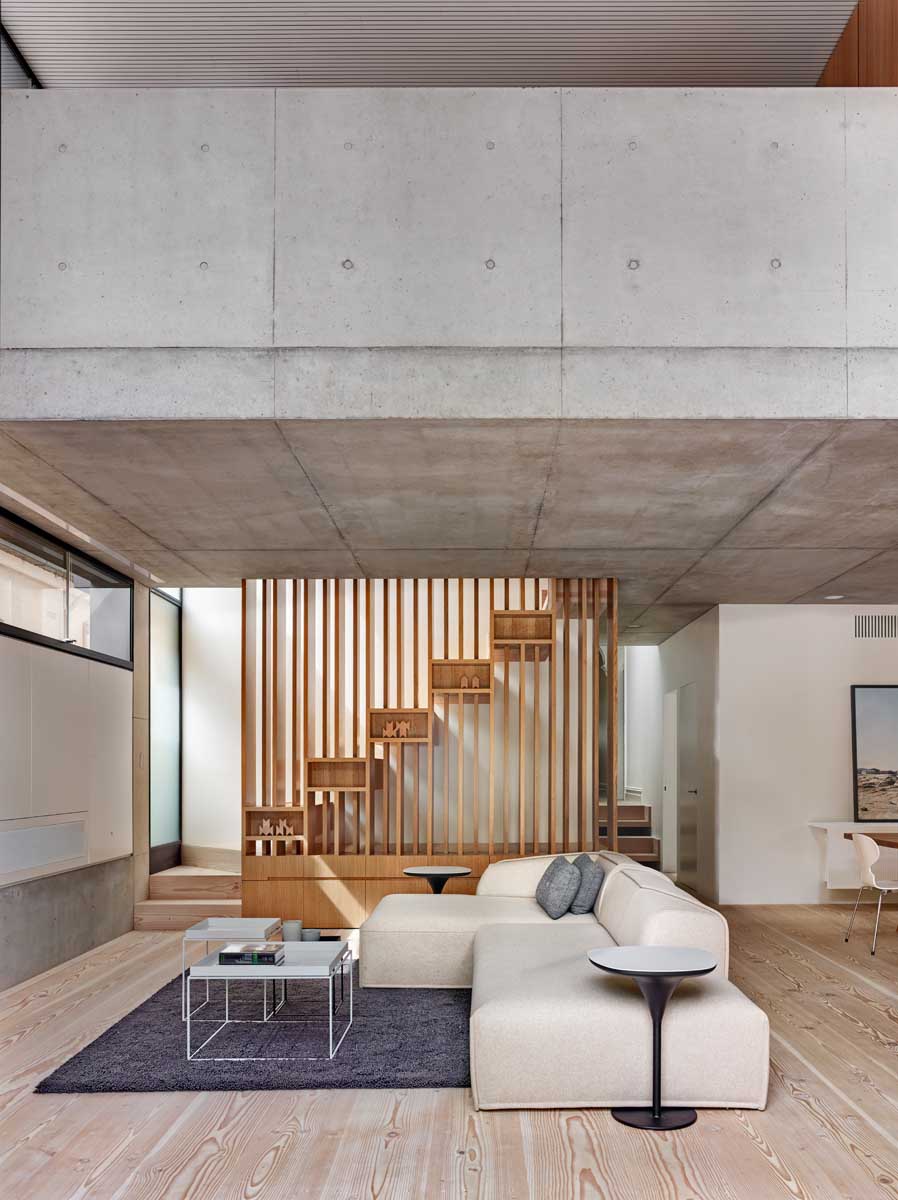

The project is not primarily focused on the connection to external spaces but looks inward with interconnections of cloistered spaces, created and selected framed openings. The outer concrete elements contrast with the timber elements that further define the various internal zones and functions within the house.

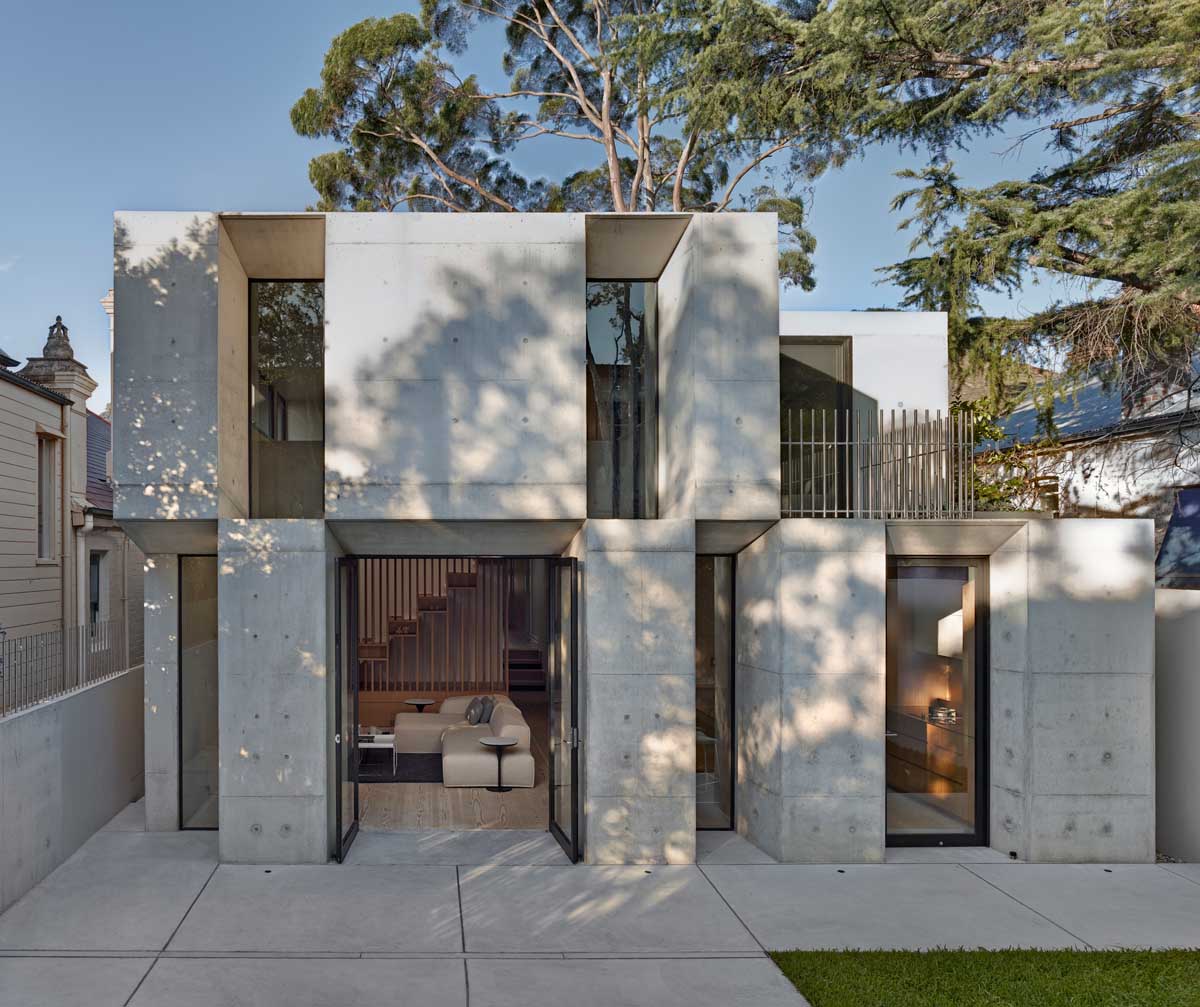

The depth of the rear facade creates an interstitial threshold which is a space in itself to be occupied and provide a sense of enclosure. The idea is to create intermediating spaces that ground the house in relation to both its
interior and exterior.

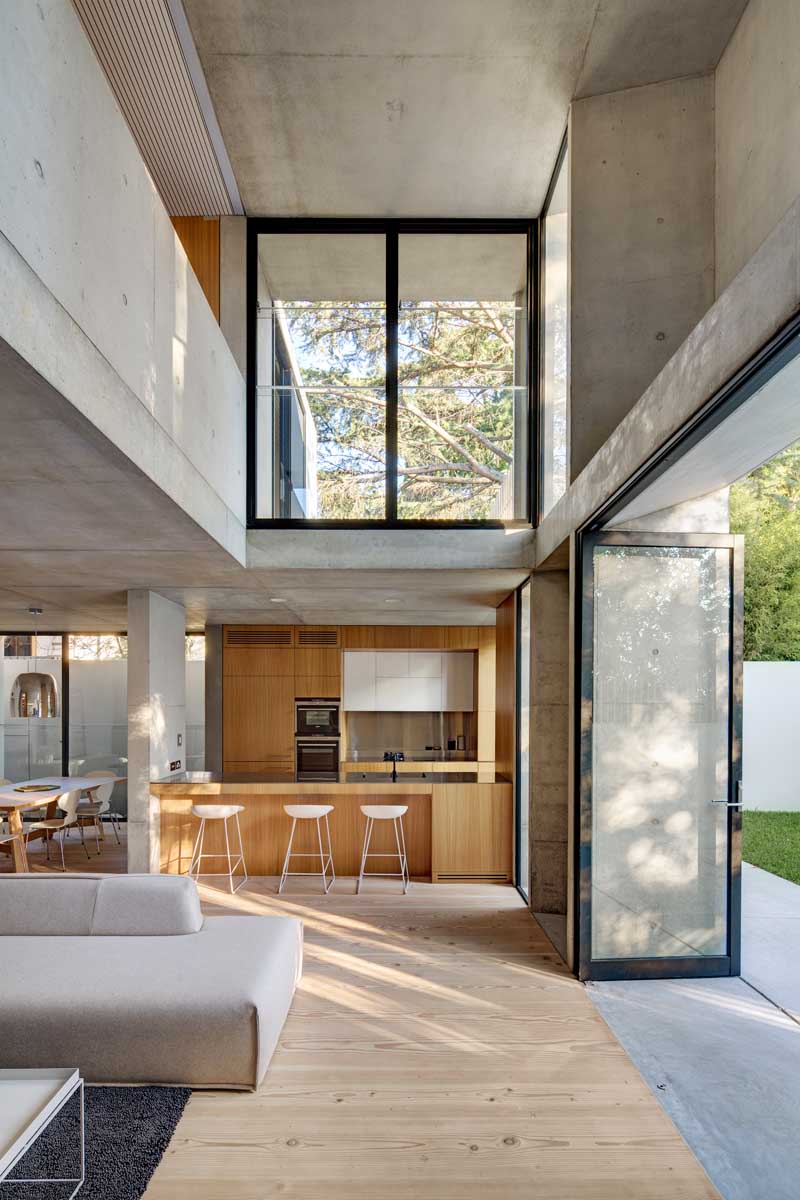

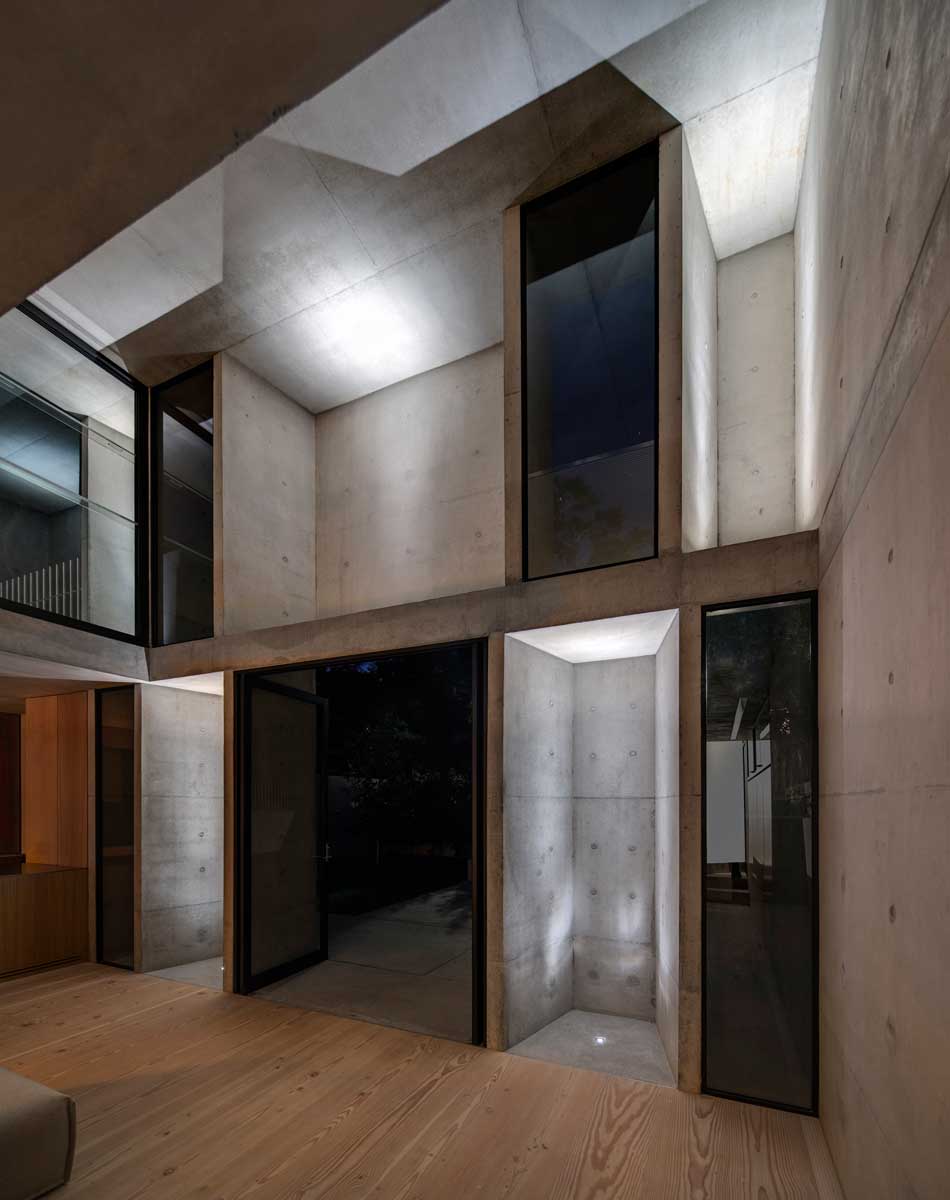

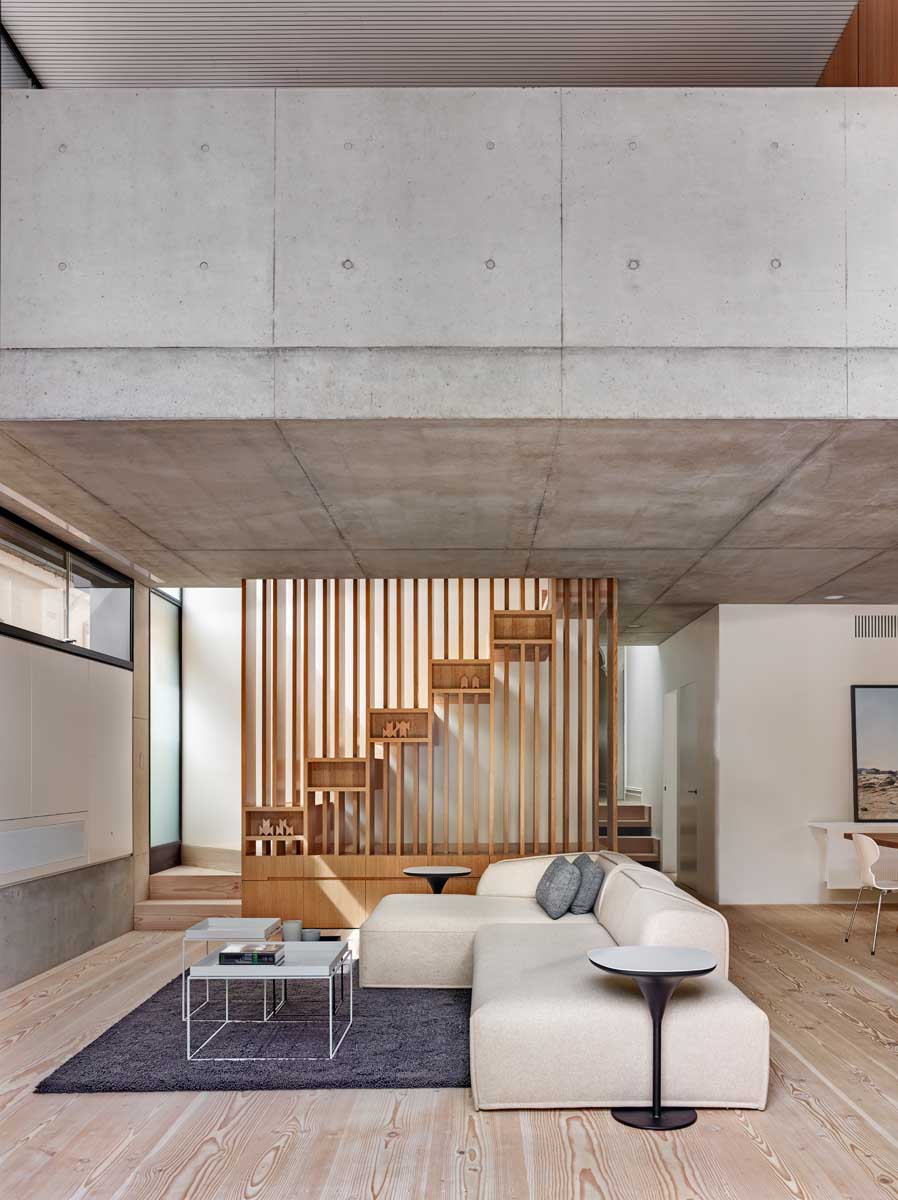

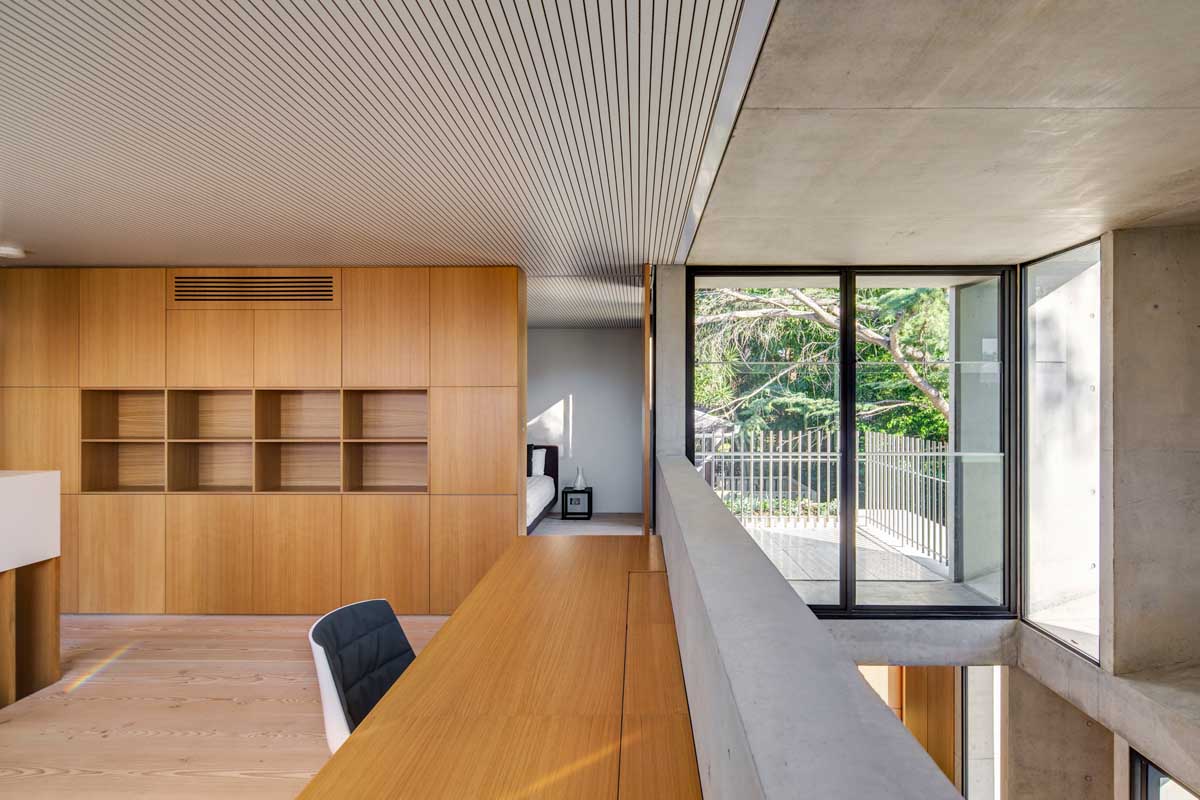

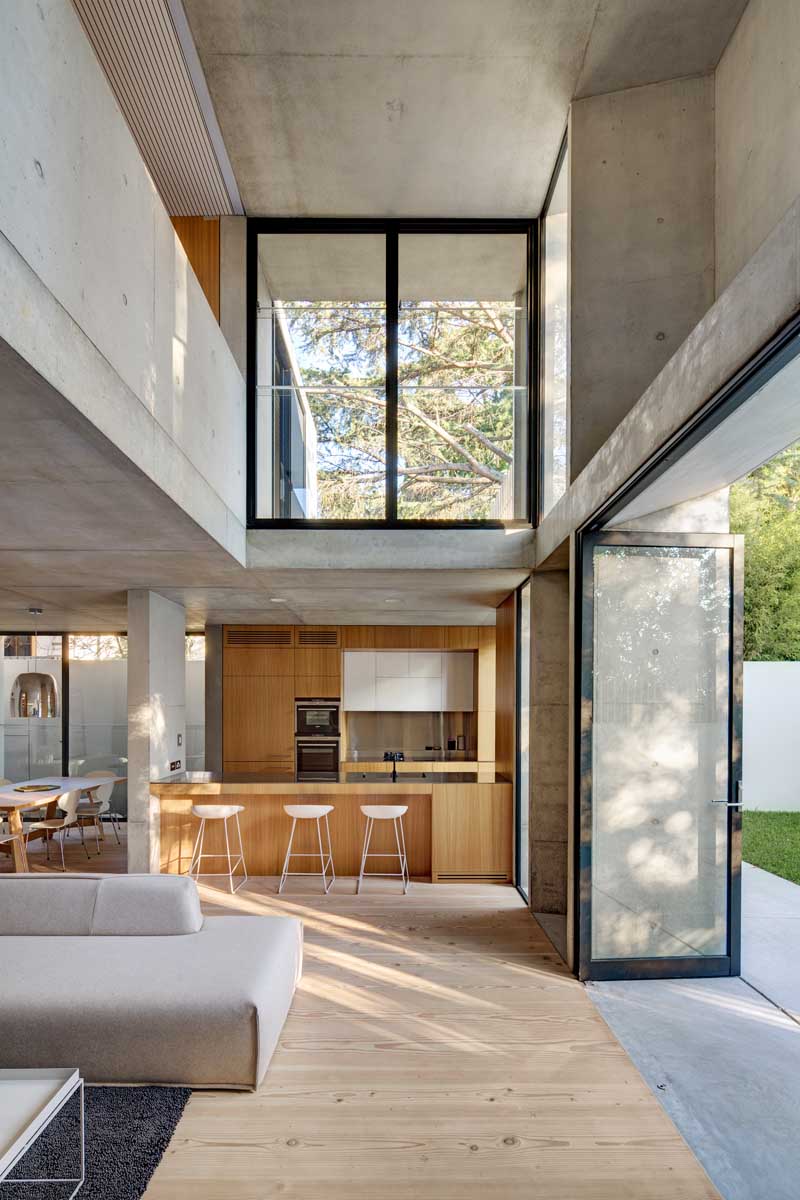

Within the house the void acts as a centralising space via which other areas of the house interconnect. Structurally the house created many demands, we wanted the stacked concrete elements of the rear facade to appear to load at “zero points” at the surface of the facade. We worked with the structural engineers over many meetings to find a resolution that worked for all. Gratefully the house has recently been awarded best small building at the inaugural ACSE awards.

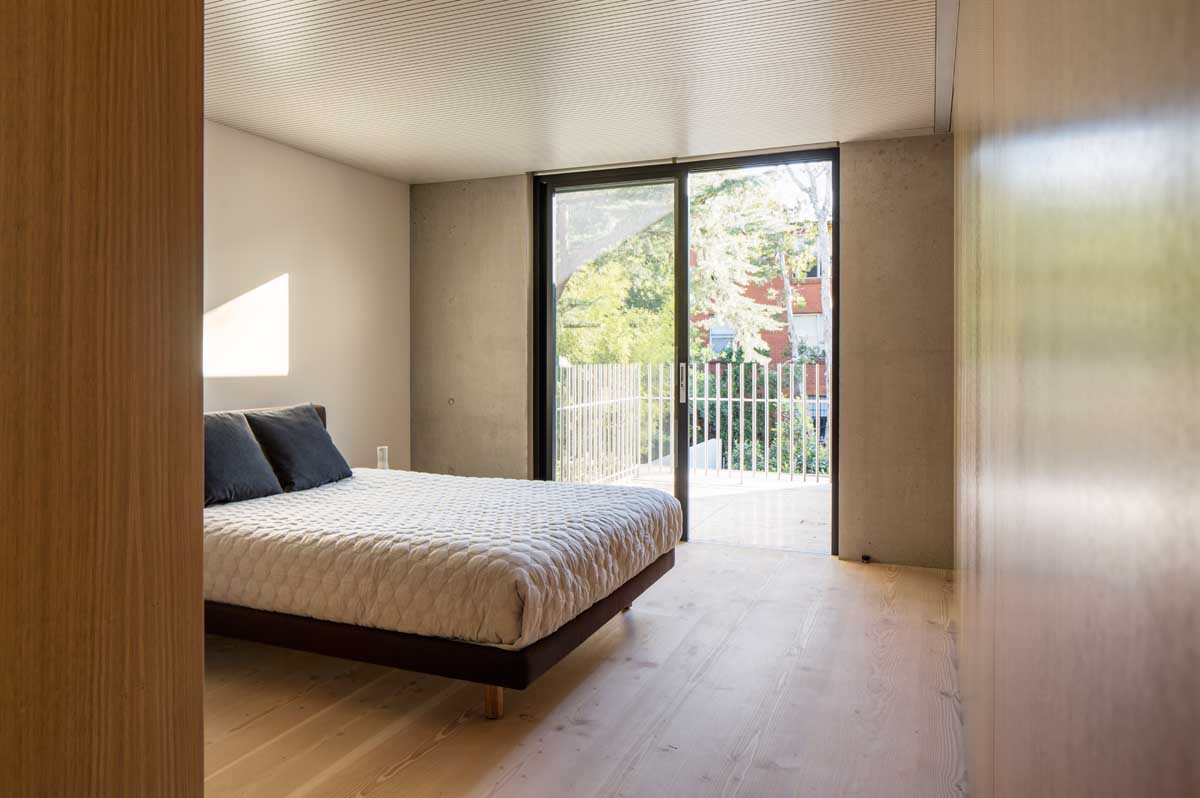

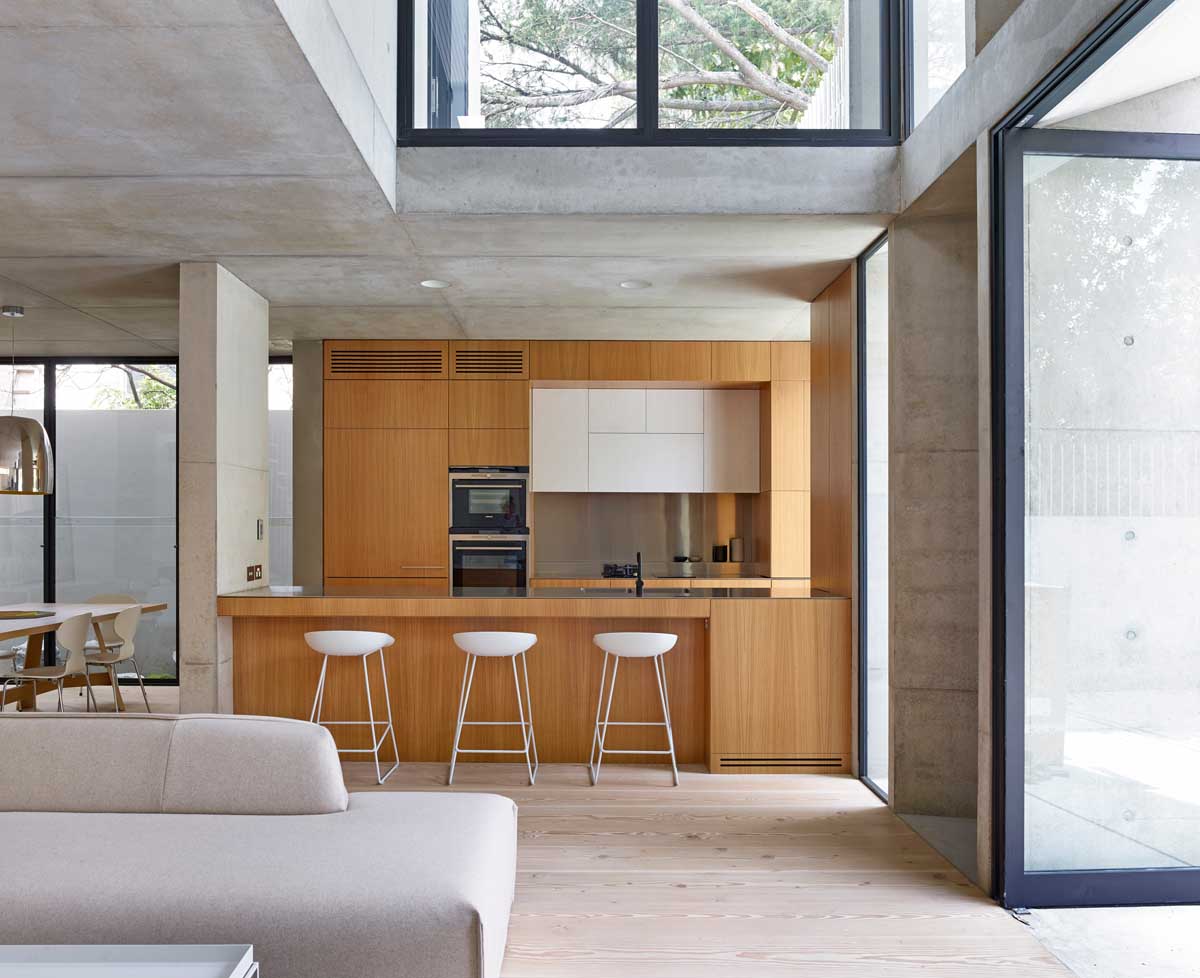

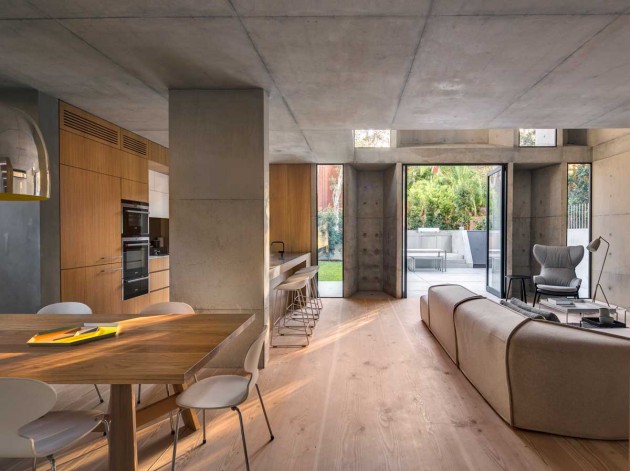

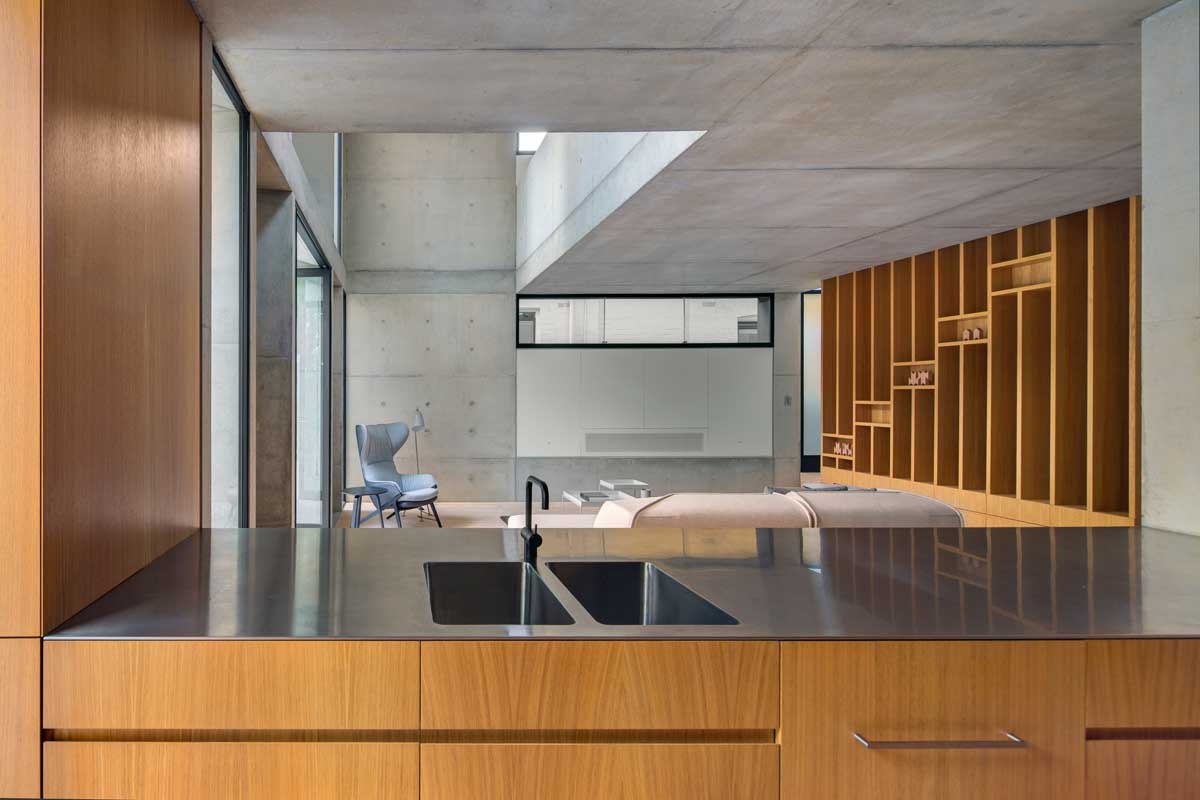

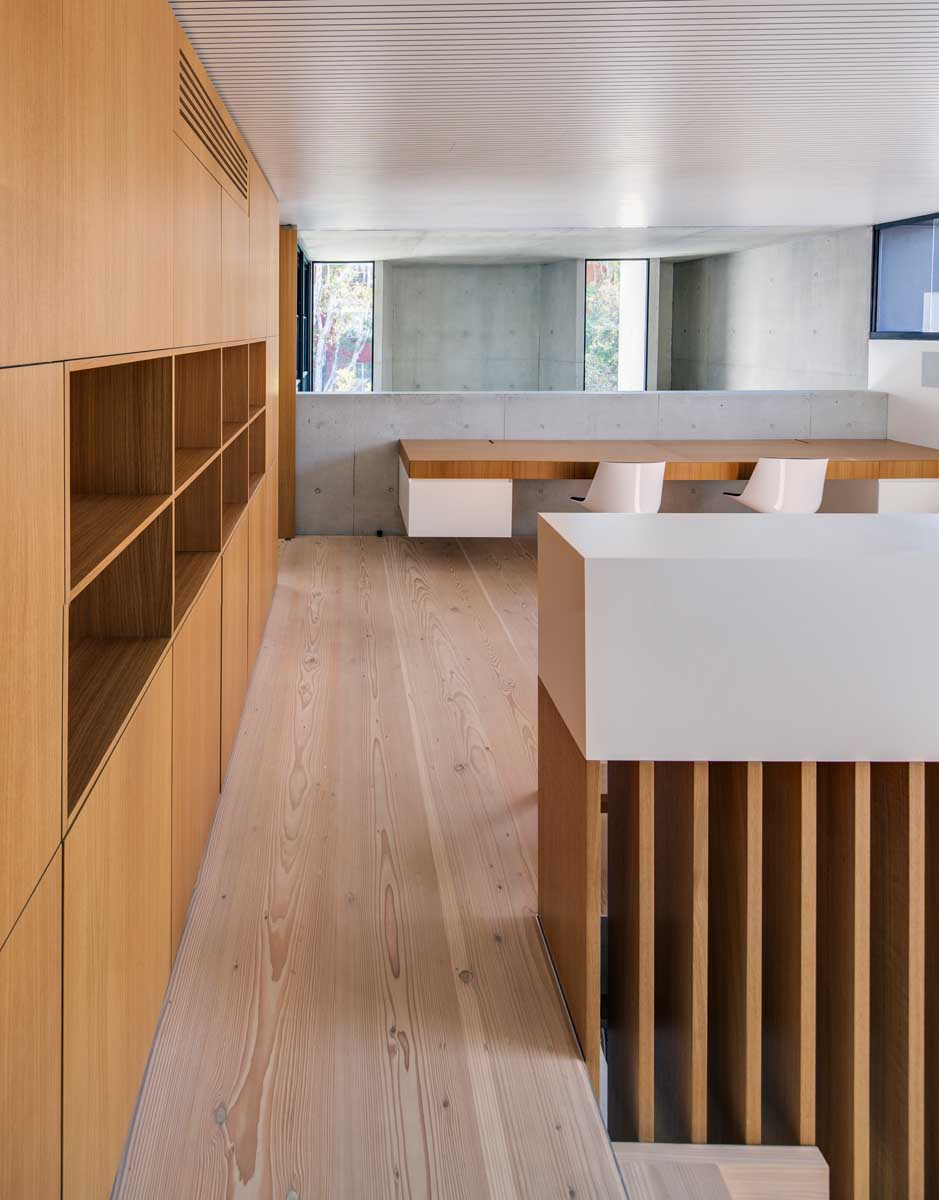

Thermal modeling was performed on the schematic 3D model and the use of concrete added to the thermal performance of the building considerably to the point where double glazing was not considered necessary. Complementing materials of near raw fifteen metre continuous length floor boards and a restrained palette of black aluminium, stainless steel and oak appear throughout the house and create a cohesive connection between original and new. These materials were selected, partially, so as not to compete with the ornate patterning of the original house along with their own inherent qualities.

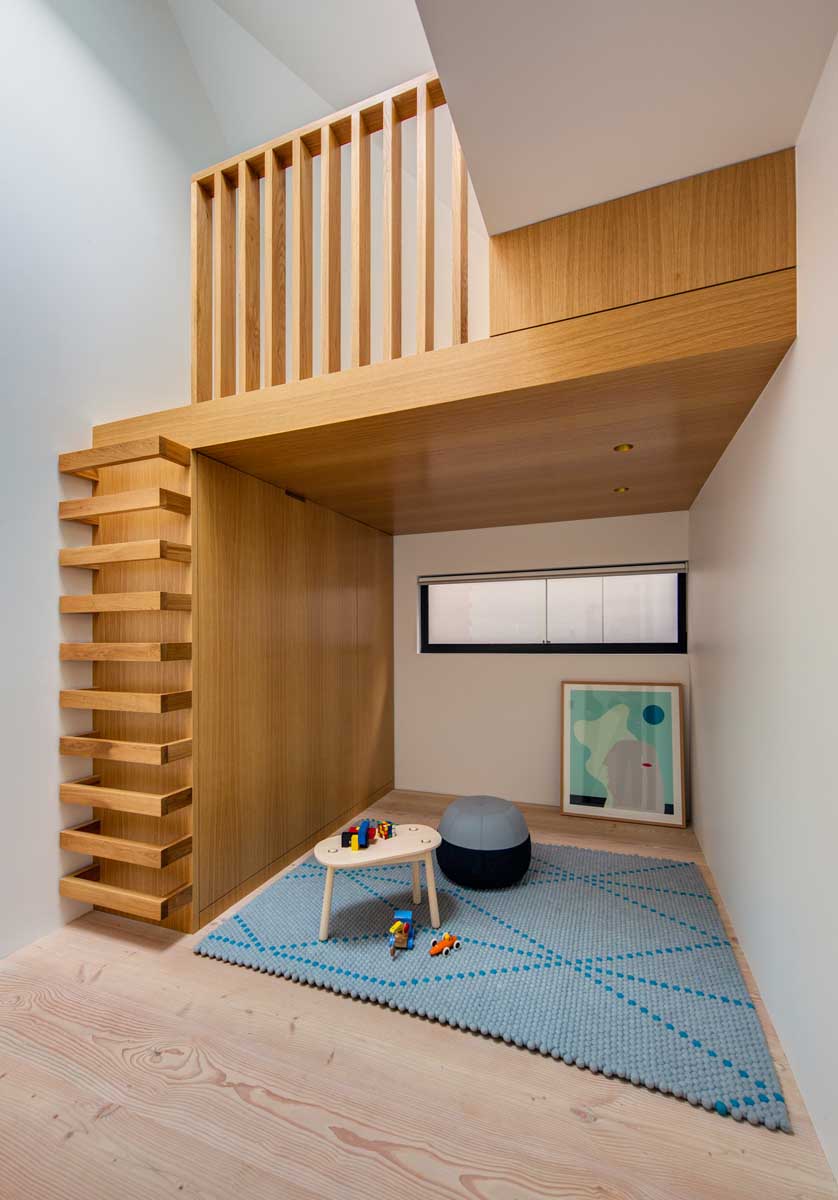

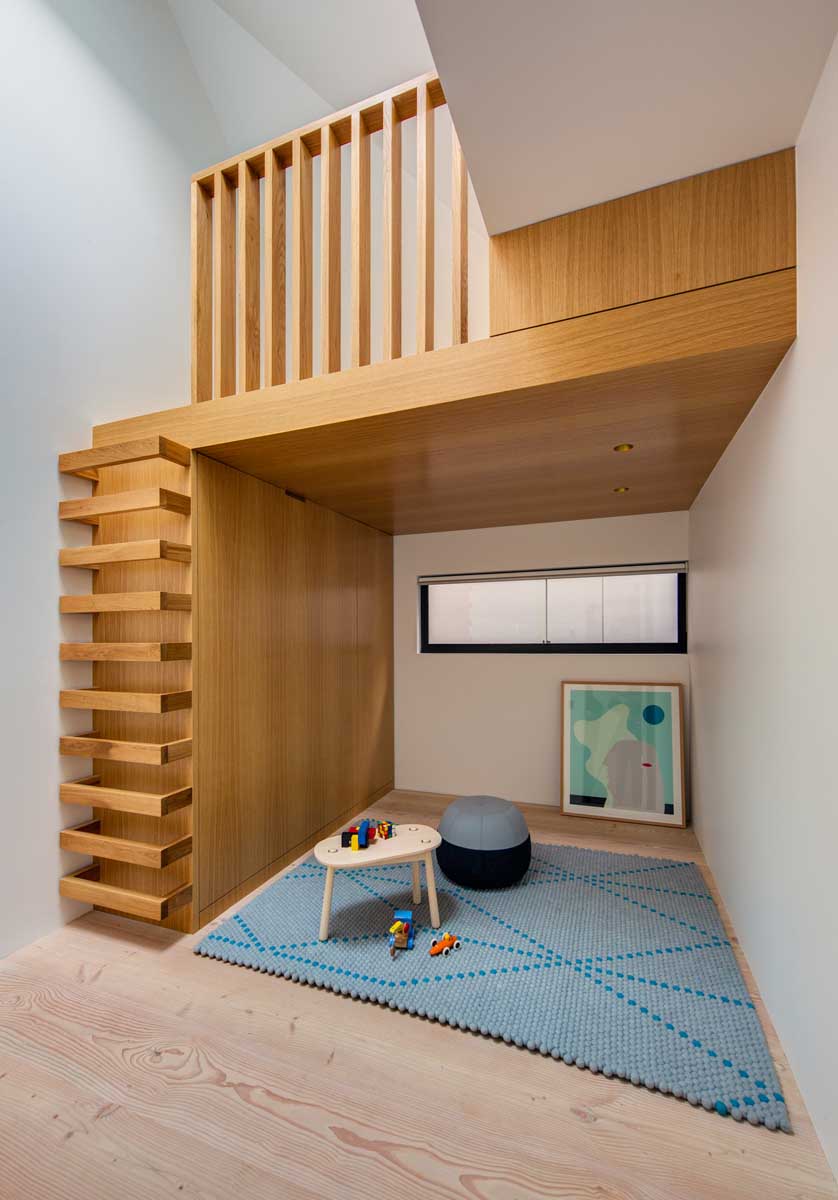

The project’s fundamental rationale is to create a family home that recognised the various needs of the occupiers, spaces for children and adults with a flexibility for both retreat and engagement.

Sustainability
Significant sections of the house are constructed from single skin concrete, which given its thermal mass,longevity and embodied energy as say in comparison to steel was considered a sound choice as a building material for the temperate climate of Sydney.

Thermal modeling was performed on the schematic 3D model and the use of concrete added to the thermal performance of the building considerably to the point where double glazing was not considered necessary. Transport of concrete was from the Hanson site in Glebe less than 2km from the site.

The house is designed and constructed for longevity. Aside from the materiality the use of narrow openings with deep reveals to the rear western facade aids in reducing direct sun in the summer months.

The timber flooring material is from a fourth generation family owned business from plantation forests FSC and PEFC certification. The flooring is finished with soap and lye which are inert materials with E0 organic volatile
emission.

Architect: Nobbs Radford Architects | Sean Radford and Alison Nobbs
